Flush-mounted into the ceiling, this source of light is almost invisible. An abundance of light streams from a single spot. Masterfully crafted reflectors create beautiful cones of light in the room, casting dainty shadows and adding brilliance to any material. Dot 28 emanates a soft, atmospheric light. A system for simple, yet sophisticated lighting that lets a room speak for itself.
DOT 28
FRAMELESS INTEGRATION. Flush-mounted into the ceiling, this source of light is almost invisible. An abundance of light streams from a single spot. Masterfully crafted reflectors create beautiful cones of light in the room, casting dainty shadows and adding brilliance to any material. Dot 28 emanates a soft, atmospheric light. A system for simple, yet sophisticated lighting that lets a room speak for itself.
DOT 28 GLARE-FREE
The glare suppression ring further enhances the already flawless light quality of Dot 28, creating an exquisite and non-glaring light. Through its UGR VALUE <19 at 25°/35° this version is also suitable for display work stations.
DOT 28 POWER
HIGH PERFORMANCE MEETS INSPIRATION. When a 28 mm spot puts out more than 1000 lumen of light, a special kind of beauty unfolds: a powerful yet soft cone of light fills the room. Simply inspirational. This extraordinary performance is made possible by a longer cooling element and can be increased further by an additional cooling surface, in some cases leading to an output of even more than 1000 lm.

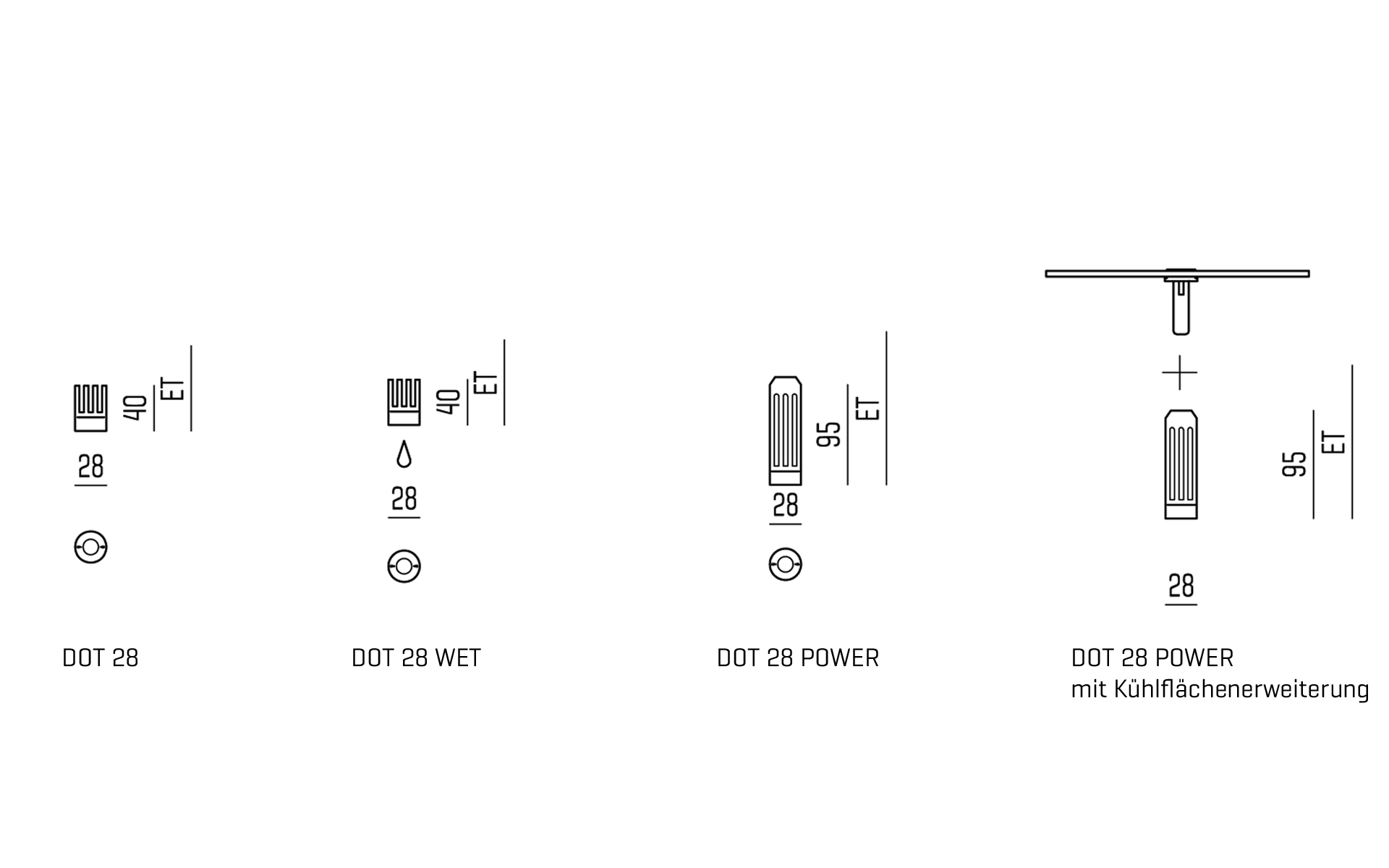

DOT 28 - frameless in all kinds of ceilings.
| Item No. | LED module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2781_ _ _ | DOT 28 | flush-mounted installation in SYSTEM DOT 28 | aluminium fixture, passive cooling | constant power 400 lm | 350 mA | 4W* |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3781_ _ _ | DOT 28 WET | flush-mounted installation in SYSTEM DOT 28 | splash proof IP44 | aluminium fixture, passive cooling 370 lm | 350 mA | 4W* |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2782_ _ _ | DOT 28 POWER | flush mounted spotlight 740lm | 12V | 8,5W | 700mA with cooling surface in concrete a current of 1050mA is possible: 1010lm | 1050mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3782_ _ E | DOT 28 POWER WET E | IP44 incl. glare suppression basalt black, aluminium anodized,
installation depth ID = installation depth of module + 60 mm, consider passive cooling, with
extended cooling surface in concrete a current feed with 1050 mA, is possible, splash-proof
on all sides 560-760 lm | 700-1050 mA | 8.5-13W* |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 208900 | Extended Cooling-Surface | for capsules with higher current feed, see installation instructions | for DOT 28 POWER | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 208901 | Adjustment iron | for extended cooling surface | for alignment of the cooling | mandrel, in case it was set in concrete at an angle | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
278020 278030 278040 |
REPAIR SET, for DOT 28, ORB, DOT POWER und DOT 35, for authorized electricians 2700K 3000K 4000k |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| * excl. LED-Driver; constant current | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Add the following specifications to your order |
| Item No. | reflector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 _ _ | radiation angle 25° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3 _ _ | radiation angle 35° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6 _ _ | radiation angle 55° |
| Item No. | LED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| _ 2 _ | RA 93 | 2700 K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| _ 3 _ | RA 93 | 3000 K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| _ 4 _ | RA 93 | 4000 K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item No. | colour |
|---|---|
| _ _ K | kaschmeregold |
| _ _ S | snow silver |
| _ _ T | total black |
| _ _ R | rose |
| _ _ G | gold |
| _ _ M | muscat bronze |
| _ _ P | polar white (equals RAL 9016) |
| _ _ E | glare suppression ring | UGR <19°bei 25°/35° | UGR <22° at 55°, Installation depth +15 mm, only for Dot 28 and Dot 28 Power. Luminous flux diminishes by approx. 20 %. |
| _ _ A | Fade ring | Polarwhite with deep black center | UGR <19°at 25°/35° | UGR <22°at 55° Installation depth = installation depth of module + 10mm except for capsules, only for DOT 28 and DOT 28 Power and DOT 35, luminous flux diminishes by approx. 20% |
| Item No. | LED-Driver 350mA |
|---|---|
| 299003 | ON-OF 4,2W 350mA | 1 LED | not dimmable LWH 38x27x21 MM |
| 299023 | ON-OF 20W 350mA | 1-3 LEDs | not dimmable LWH 118x35x26 MM |
| 299123 | 0-10 25W 350mA | 1-4 LEDs | dimmable | 0-10V LWH 105x68x23 MM |
| 299143 | 0-10 40W 350mA | 1-7 LEDs | dimmable | 0-10V LWH 124x82x23 MM |
| 299223 | DA-PU 25W 350mA | 1-4 LEDs | dimmable | DALI/Push LWH 105x68x23 MM |
| 299243 | DA-PU 40W 350mA | 1-7 LEDs | dimmable | DALI/Push LWH 124x82x23 MM |
| Item No. | LED-Driver 700mA (for DOT 28 POWER, depending on the mounting situation, cooling surface Item No. 208900 needed) |
|---|---|
| 299037 | ON-OFF 35W 700mA | 1-3 LEDs | not dimmable LWH 148x40x30 MM |
| 299127 | 0-10 25W 700mA | 1-2 LEDs | dimmable | 0-10V LWH 105x68x23 MM |
| 299147 | 0-10 40W 700mA | 1-4 LEDs | dimmable | 0-10V LWH 124x82x23 MM |
| 299167 | 0-10 60W 700mA | 1-6 LEDs | dimmable | 0-10V LWH 124x82x23 MM |
| 299227 | DA-PU 25W 700mA | 1-2 LEDs | dimmable | DALI/Push LWH 105x68x23 MM |
| 299247 | DA-PU 40W 700mA | 1-4 LEDs | dimmable | DALI/Push LWH 124x82x23 MM |
| 299267 | DA-PU 60W 700mA | 1-6 LEDs | dimmable | DALI/Push LWH 124x82x23 MM |
| Item No. | LED-Driver 1050mA (for DOT 28 POWER with extended cooling surface Item No. 208900, only for concrete) |
|---|---|
| 299031 | ON-OFF 35W 1050mA| 1-2 LEDs | not dimmable LWH 148x40x30 MM |
| 299141 | 0-10 40W 1050mA| 1-2 LEDs | dimmable | 0-10V LWH 12482x23 MM |
| 299161 | 0-10 60W 1050mA | 1-4 LEDs | dimmable | 0-10V LWH 124x82x23 MM |
| 299241 | DA-PU 40W 1050mA | 1-2 LEDs | dimmable | DALI/Push LWH 124x82x23 MM |
| 299261 | DA-PU 60W 1050mA | 1-4 LEDs | dimmable | DALI/Push LWH 124x82x23 MM |
| Minimum diameter according to cable length | |
|---|---|
| 0,5 mm² – 100 m, 0,75 mm² – 150 m, 1,0 mm² – 200 m |
