Dot 28 Sfere, the minimalistic, elegant solution for spot-on lighting. Rotatable, swivelling and, of course, compatible with all ceiling materials. Perfect for highlighting paintings, furnishings or special features of a room or to create sculptural effects on a ceiling.
SFERE 28 - frameless in all kinds of ceilings
| Item No. | Types of lamps |
|---|---|

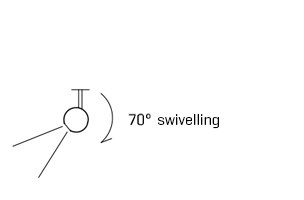

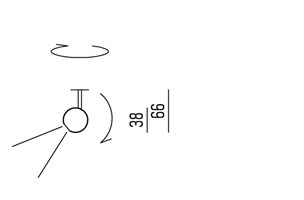

| 2785_ _ _ | SFERE 28 | moving, rotatable/swivelling 240°/70°, installation in SYSTEM DOT 28, solid
aluminium 400lm | 350mA | 4W* 300lm | 250mA | 3W* |
| 2786_ _ P | SFERE 28 SPECIAL EDITION | polar white RAL 9016, bayonet and tube in white |
| 278505 | BAYONET FOR WALL MOUNTING | max. current feed of 250 mA below a height of 230 cm required 300lm | 250mA | 3W* |
| * excl. converter, constant power | |
| CONFIGURE ONLINE |
Add the following specifications to your order:
| Item No. | Lens |
|---|---|
| 1 _ _ | Beam angle 20° |
| Item No. | Reflector | ||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| On request | Beam angle 25° | ||||||||||||||||||||||||||||||||||
| 3 _ _ | Beam angle 35° | ||||||||||||||||||||||||||||||||||
| 6 _ _ | Beam angle 55° |
| Item No. | LED | ||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| _ 1 _ | DIM TO WARM | RA 96 | 1800 - 2700K @350mA | ||||||||||||||||||||||||||||||||||
| _ 2 _ | RA 93 | 2700 K | ||||||||||||||||||||||||||||||||||
| _ 3 _ | RA 93 | 3000 K | ||||||||||||||||||||||||||||||||||
| _ 4 _ | RA 93 | 4000 K | ||||||||||||||||||||||||||||||||||
| Item No. | Colour |
|---|---|
| _ _ K | kashmeregold |
| _ _ S | snow silver |
| _ _ T | total black |
| _ _ R | rose |
| _ _ G | gold |
| _ _ M | muscat bronze |
| _ _ P | polar white |
| REPURCHASE RECYCLING CIRCULAR ECONOMY |
| Item No. | LED-Driver ON-OFF |
|---|---|
| 299003 | ON-OFF 4,2W 350mA | 1 LED LWH 38x27x21 MM |
| 299313 | ON-OFF 12W 250mA | 1-3 LEDs for mounting below 230cm room hight LWH 147x44x22 MM |
| 299023 | ON-OFF 20W 350mA | 1-3 LEDs | not dimmable LWH 118x35x26 MM |
| Item No. | LED-Driver DALI/Push |
|---|---|
| 299223 | DA-PU 25W 350mA | 1-4 LEDs | dimmable LWH 105x68x23 MM |
| 299243 | DA-PU 40W 350mA | 1-7 LEDs | dimmable LWH 12482x23 MM |
| Minimum diameter according to cable length | |
|---|---|
| 0,75 mm² – 150 m, 1,5 mm² – 200 m |
