WALL 28 +
WALL 28 POWER

A LIGHT FOR THE WALL. Uniform illumination of the wall surface from top to bottom: After years of research, we have succeeded in integrating this quality into the WALL 28 product. Precise lighting technology in in an extremely compact unit with an installation depth of just 28 mm.


INSTALLATION
CONFIGURATOR
SUSTAINABILITY

WALL 28 + WALL 28 Power

A LIGHT FOR THE WALL. At last! From the inconspicuous, a wall surface is flooded with light from top to bottom. With its flush integration and compact size, it embodies innovation at its best. The outstanding feature of this new product is the light edge. Precise micro-faceting with a reflector from Bartenbach makes it possible to redirect the LED light beams onto the wall. The rotation in the bayonet enables the luminaire to be individually aligned to the wall. This adaptability opens up a wide range of design options for staging the room according to your own ideas. Whether artfully accentuating certain elements or emphasizing architectural details - the Wallwasher skillfully implements the designer's vision. A minimalist design that focuses entirely on the effect of the light.




Item No.Types of lamps

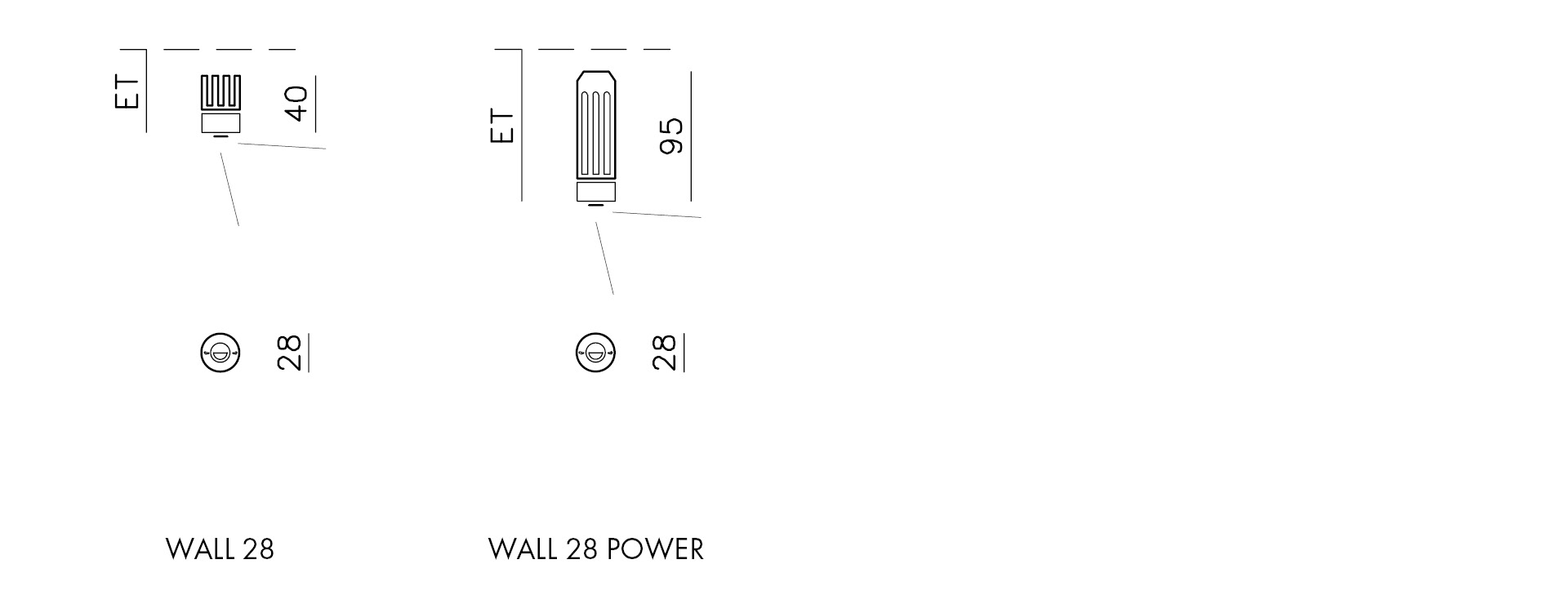

27912_ _WALL 28 | Wallwasher for flush installation in SYSTEM DOT 28, made of solid aluminium, passive cooling, precise installation of the built-in module required due to the grazing light!
350lm | 350mA | 4,5W*
27922_ _WALL 28 POWER | Wallwasher for flush installation in SYSTEM DOT 28, made of solid aluminium, passive cooling, installation depth ET = module installation depth + 50 mm except for capsules, precise installation of the built-in module required due to the grazing light!
470lm | 700mA | 7,5W*
168101ASSEMBLY PLIERS | circlip pliers, installation aid
on RequestREPAIR SET, for WALL 28 and WALL 28 POWER for authorized electricians
2700K
3000K
4000K
*excl. LED-Driver; constant current
CONFIGURE ONLINE

Add the following specifications to your order:

Item No.LED
2 _RA 92 | 2700K
3 _RA 92 | 3000K
4 _RA 92 | 4000K
Item No.colour
_ KKaschmeregold
_ SSnow silver
_ TTotal black
_ RRose
_ GGold
_ MMuscat bronze
_ PPolar white (equals RAL 9016)
REPURCHASE RECYCLING CIRCULAR ECONOMY
Item No.LED-Driver 350mA
299023ON-OFF | 20W 350mA | 1-3 LEDs | not dimmable
LBH 118x35x26mm
299223DA-PU | 25W 350mA | 1-4 LEDs | dimmable | DALI/PUSH
LBH 105x68x23mm
299243DA-PU | 40W 350mA | 1-7 LEDs | dimmable| DALI/PUSH
LBH 124x82x23mm
Item No.LED-Driver 700mA (for WALL 28 POWER, depending on the mounting situation)
299037ON-OFF 35W 700mA | 1-3 LEDs | not dimmable
LBH 148x40x30mm
299227DA-PU 25W 700mA | 1-2 LEDs | dimmable | DALI/PUSH
LBH 105x68x23mm
299247DA-PU 40W 700mA | 1-4 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm
299267DA-PU 60W 700mA | 1-6 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm
 Minimum diameter according to cable length
  0,75mm²-100m; 1,5mm²- 200m

LIGHT DISTRIBUTION


maximum current


REFERENCE

Text hier einfügen

Installation Guide

Text hier einfügen

INSTALLATION MODULES

Text hier einfügen

DRYWALL

Text hier einfügen

CONCRETE

Text hier einfügen

PLASTER

Text hier einfügen

WOOD
