BALDA

CONO 28

Minimalist in design, this pendant lamp uses the tried and tested DOT 28 lighting technology while the conical tapering perfectly showcases the grain of the wood.

INSTALLATION
CONFIGURATOR

ORB 28 - Frameless integration in all types of ceilings.


Item No. Types of lamps
CONO 28 | pendant luminaire for mounting in SYSTEM DOT 28,
black braid cable 150 cm, 2700 K, 55°, incl. bayonet mounting
400 lm | 350mA | 4W*
368900 Natural oiled oak
368950 Black stained ash
*excl. LED-Driver; constant current
CONFIGURE ONLINE
Item No. LED-Driver ON-OFF
299003 ON-OFF | 4,2W 350mA² | 1 LED³ | not dimmable
LWH 38x27x21mm
399023 ON-OFF | 25W 350mA | 1-4 LEDs | not dimmable
LWH 147x40x32mm
Item No. LED-Driver DALI-2 | Push
299223 DALI-2 | PUSH 25W 350mA | 1-4 LEDs | dimmable 1-100%
LWH 147x40x32mm
399263 DALI-2 | PUSH | 1-10V 60W 350mA | 1-6 LEDs | except D2W: 1-5 LEDs | dimmale 1-100%
LWH 124x79x22mm

² cable length max. 33m at 0.75mm²
³ not possible for WALL28
  Minimum diameter according to cable length
  0,5 mm² – 100 m, 0,75 mm² – 150 m, 1,0 mm² – 200 m

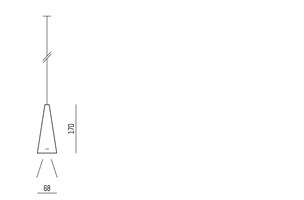

DIMENSION
