In the name of beauty and brilliance.
The strength of this luminaire is in its form, a form that is capable of co-designing a room. The MOL 28 accentuates with elegance and impresses with soft curves. Its precision machined aluminium body is available in all colours of the SYSTEM DOT 28. On its underside, it forms a small lightshade with which it gently influences the atmosphere of any room. The MOL 28 flows into the room and captivates with its silkiness.

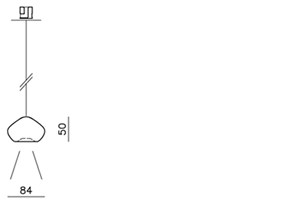

MOL 28 - Frameless integration in all types of ceilings.
| Item No. | Types of lamps |
|---|---|
| 3789_ _ _ | MOL 28, suspending, installation in SYSTEM DOT 28, solid aluminium, cable length: 150cm/ 4,9 ft, incl. bayonet mounting 400 lm | 350 mA | 4 W* current feed up to 700 mA possible: 740 lm, 8,5 W* |
| 168022 | OVERLENGTH black braid cable, up to 4m overall. Please state overall length when ordering. |
| *excl. LED-Driver; constant current | |
| CONFIGURE ONLINE |
Add the following specifications to your order:
| Item No. | Lens |
|---|---|
| 1 _ _ | Beam angle 20° |
| Item No. | Reflector |
|---|---|
| On request | Beam angle 25° |
| 3 _ _ | Beam angle 35° |
| 6 _ _ | Beam angle 55° |
| Item No. | LED |
|---|---|
| _ 1 _ | DIM TO WARM | RA 96 | 1800 - 2700K @350mA |
| _ 7 _ | DIM TO WARM | RA 96 | 1800 - 2700K @700mA |
| _ 2 _ | RA 93 | 2700K |
| _ 3 _ | RA 93 | 3000K |
| _ 4 _ | RA 93 | 4000K |
| Item No. | Colour |
|---|---|
| _ _ K | Kashmere gold |
| _ _ S | Snow silver |
| _ _ T | Total black |
| _ _ R | Rose |
| _ _ G | Gold |
| _ _ M | Muscat bronze |
| _ _ P | Polarwhite |
| REPURCHASE RECYCLING CIRCULAR ECONOMY |
| Item No. | LED-Driver ON/OFF |
|---|---|
| 299003 | ON-OFF | 4,2W 350mA² | 1 LED³ | not dimmable LWH 38x27x21mm |
| 399023 | ON-OFF | 25W 350mA | 1-4 LEDs | not dimmable LWH 147x40x32mm |
| 299037 | ON-OFF | 35W 700mA | 1-3 LEDs | not dimmable LWH 148x40x30mm |
| Item No. | LED-Driver DALI-2 | PUSH |
|---|---|
| 299223 | DALI-2|PUSH 25W 350mA | 1-4 LEDs | dimmable 1-100% LWH 147x40x32mm |
| 399263 | DALI-2 | PUSH | 1-10V 60W 350mA | 1-6 LEDs | except D2W: 1-5 LEDs | dimmable 1-100% LWH 124x79x22mm |
| 299227 | DALI-2 | PUSH 25W 700mA | 1-2 LEDs | dimmable 1-100% LWH 147x40x32mm |
| 399267 | DALI-2 | PUSH | 1-10V 60W 700mA | 1-5 LEDs | dimmable 1-100% LWH 124x79x22mm |
² cable length max. 33m at 0.75mm² ³ not possible for WALL28 |
| Minimum diameter according to cable length | |
|---|---|
| 0,75 mm²–100m; 1,5mm²–200m |
