DOT 28 POWER

DOT 28 CONE

HIGH PERFORMANCE MEETS INSPIRATION. When a 28 mm spot puts out more than 700 lumen of light, a special kind of beauty unfolds: a powerful yet soft cone of light fills the room. Simply inspirational. On the other hand, the light output can be further increased by extending the cooling surface, resulting in an output of over 1000 lm depending on the installation situation.

INSTALLATION
CONFIGURATOR
SUSTAINABILITY

Item No.	Luminaires

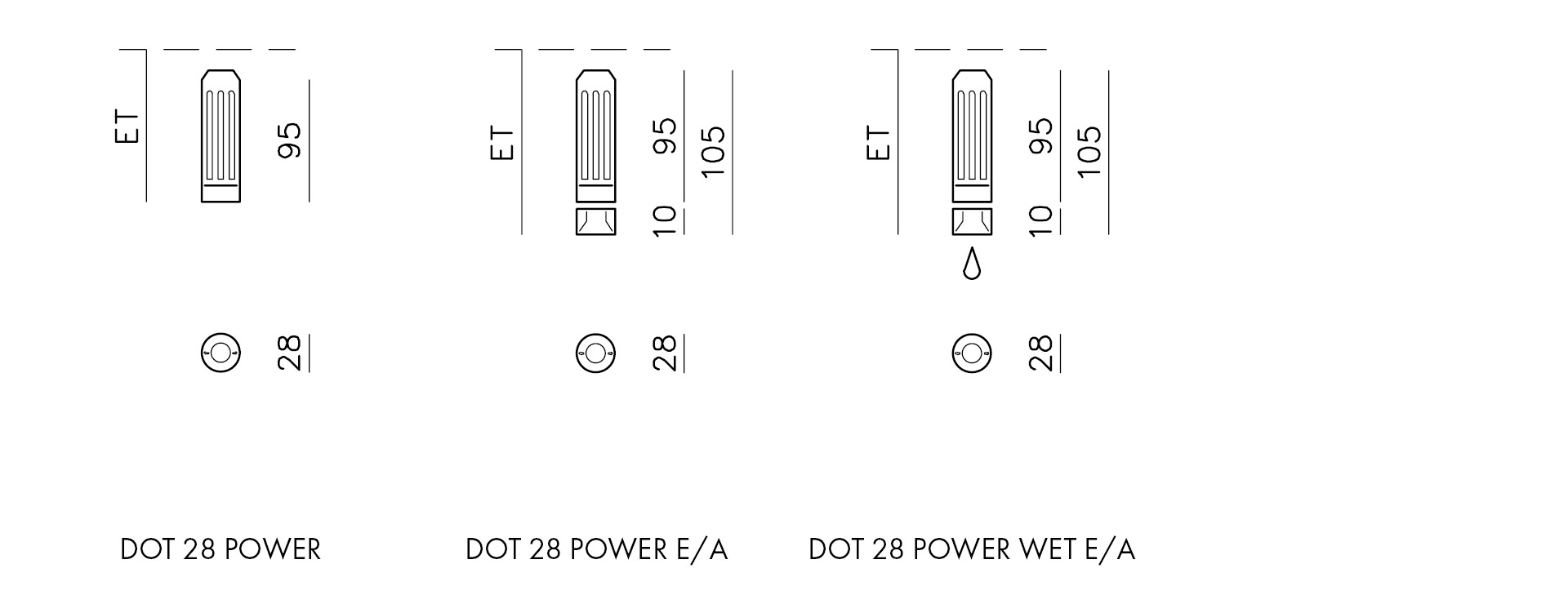

2782_ _ _	DOT 28 POWER \| for flush-mounting in SYSTEM DOT 28, solid aluminium, passive cooling, installation depth ET = module installation depth + 50 mm except for capsules 740lm \| 700mA \| 8,5W* With EXTENDED COOLING SURFACE* in concrete, current supply with 1000 mA is possible: 990lm \| 1000mA \| 12W*
3782_ _ E 3782_ _ A	DOT 28 POWER WET \| IP44, for flush-mounting in the SYSTEM DOT 28, splash-proof on all sides, solid aluminium, passive cooling, module installation depth ET + 60 mm except for capsules 560lm \| 700mA \| 8,5W* Glare supresssion ring total black Fade ring polar white with total black center
208900	EXTENDED COOLING SURFACE \| for capsules with higher current feed, see installation instructions, for DOT 28 POWER
208901	ADJUSTMENT IRON \| for extended cooling surface, for alignment of the cooling mandrel, in case it was set in concrete at an angle
168101	ASSEMBLY PLIERS \| circlip pliers, DOT 28, WALL28, DOT SLIM and VERSA installation aid
278020 278030 278040	REPAIR SET, for DOT 28, ORB 28, MOL 28, DOT 28 POWER, DOT 35 and DOT 35 POWER for authorized electricians 2700K 3000K 4000K
	* excl. LED-Driver; constant current
	CONFIGURE ONLINE

Add the following specifications to your order:

Item No.	Reflector

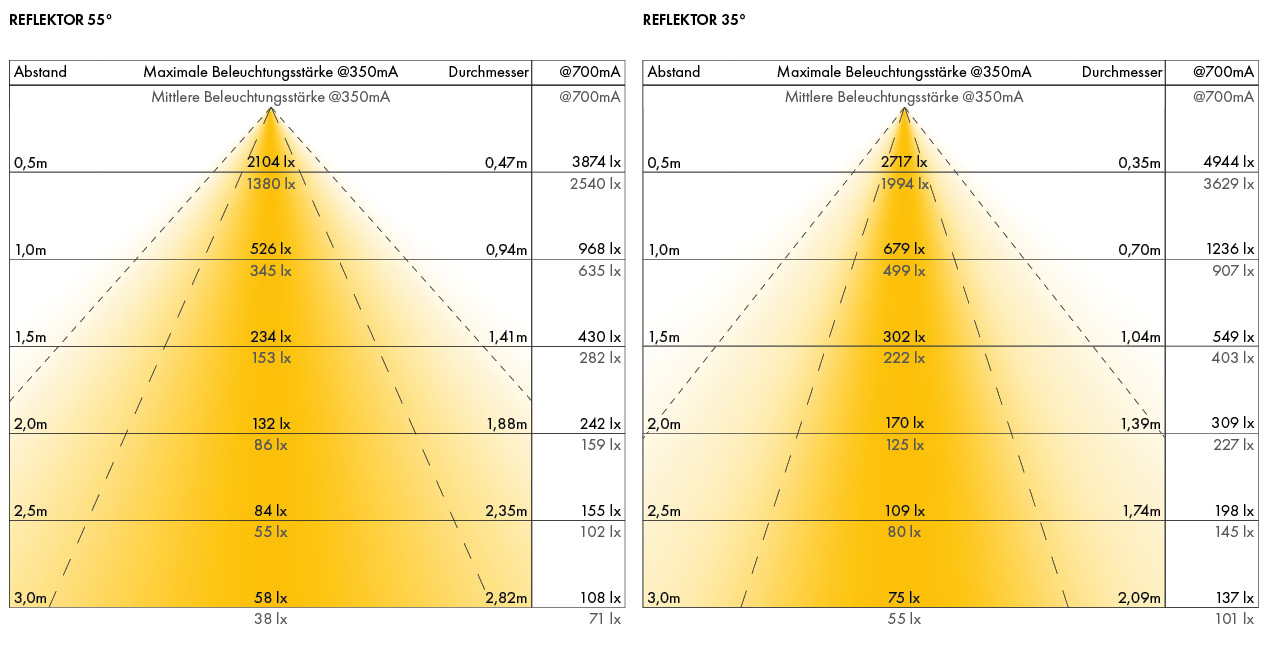

3 _ _	Beam angle 35°
6 _ _	Beam angle 55°

Item No.	LED
_ 2 _	RA 93 \| 2700K
_ 3 _	RA 93 \| 3000K
_ 4 _	RA 93 \| 4000K

Item No.	Colour
_ _ K	Kaschmeregold
_ _ S	Snow silver
_ _ T	Total black
_ _ R	Rose
_ _ G	Gold
_ _ M	Muscat bronze
_ _ P	Polar white (equals RAL 9016)
_ _ E	Glare suppression ring \| total black, anodised aluminium Installation depth ET = module installation depth +10 mm, only for DOT 28, DOT 28 POWER, DOT 35 and DOT 35 POWER. Luminous flux diminishes by approx. 20%
_ _ A	Fade ring \| polarwhite + total black center Installation depth ET = module installation depth +10 mm, only for DOT 28, DOT 28 POWER, DOT 35 and DOT 35 POWER. Luminous flux diminishes by approx. 20%
	REPURCHASE RECYCLING CIRCULAR ECONOMY

Item No.	LED-Driver 700mA (depending on the mounting situation)
299037	ON-OFF 35W 700mA \| 1-3 LEDs \| not dimmable LWH 148x40x30mm
299227	DALI-2\|PUSH 25W 700mA \| 1-2 LEDs \| dimmable 1-100% LWH 147x40x32mm
399267	DALI-2\|PUSH\|1-10V 60W 700mA \| 1-5 LEDs \| dimmable 1-100% LWH 124x79x22mm
