SOFT FASCINATION. New design freedom for a classic. DOT 28 CONE nestles flush and seamlessly against the ceiling surface. The lifting slope integrated into the new bayonet creates a fascinating aesthetic. Focused light, high-quality reflectors, and enhanced glare suppression ensure brilliant lighting moods. DOT 28 CONE thus has a dual effect – architectural and scenographic.
| Art.Nr. | Leuchten |
|---|---|

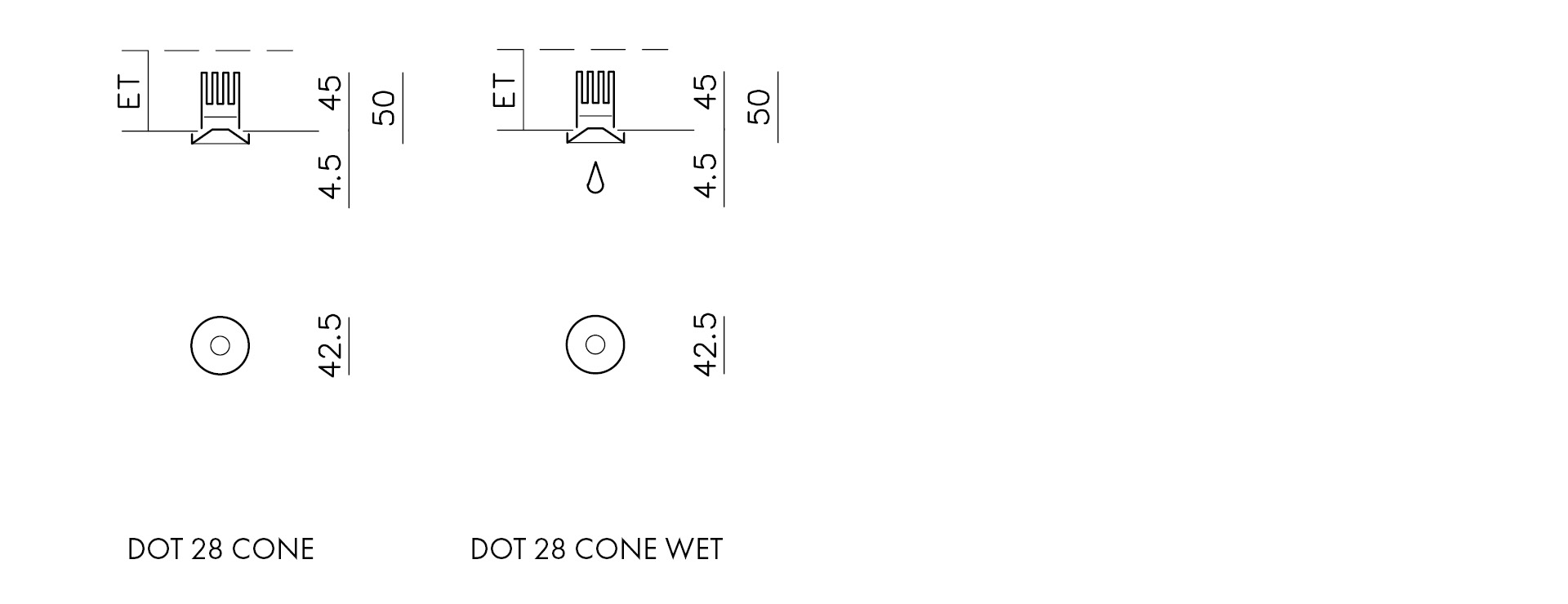

| 2771_ _ _ | DOT 28 CONE | semi-recessed luminaire for installation in SYSTEM DOT 28, solid aluminum, passive cooling
400lm | 350mA | 4W* |
| 3771_ _ _ | DOT 28 CONE WET | IP44, semi-recessed luminaire for installation in SYSTEM DOT 28, splash-proof on all sides, solid aluminum, passive cooling 370lm | 350mA | 4W* |
278020 278025 278030 278035 278040 278045 278013 |
REPAIR SET, für DOT 28, ORB 28, MOL 28, DOT 28 POWER, DOT 35 und DOT 35 POWER, for authorised electricians 2700 K 2700 K B35 for lens 3000 K 3000 K B35 for lens 4000 K 4000 K B35 for lens 1800-2700 K @350mA |
| *exkl. LED-Driver; constant current | |
| CONFIGURE ONLINE |
Add the following specifications to your order:
| Item No. | Lens |
|---|---|
| 1 _ _ | Beam angle 15° |

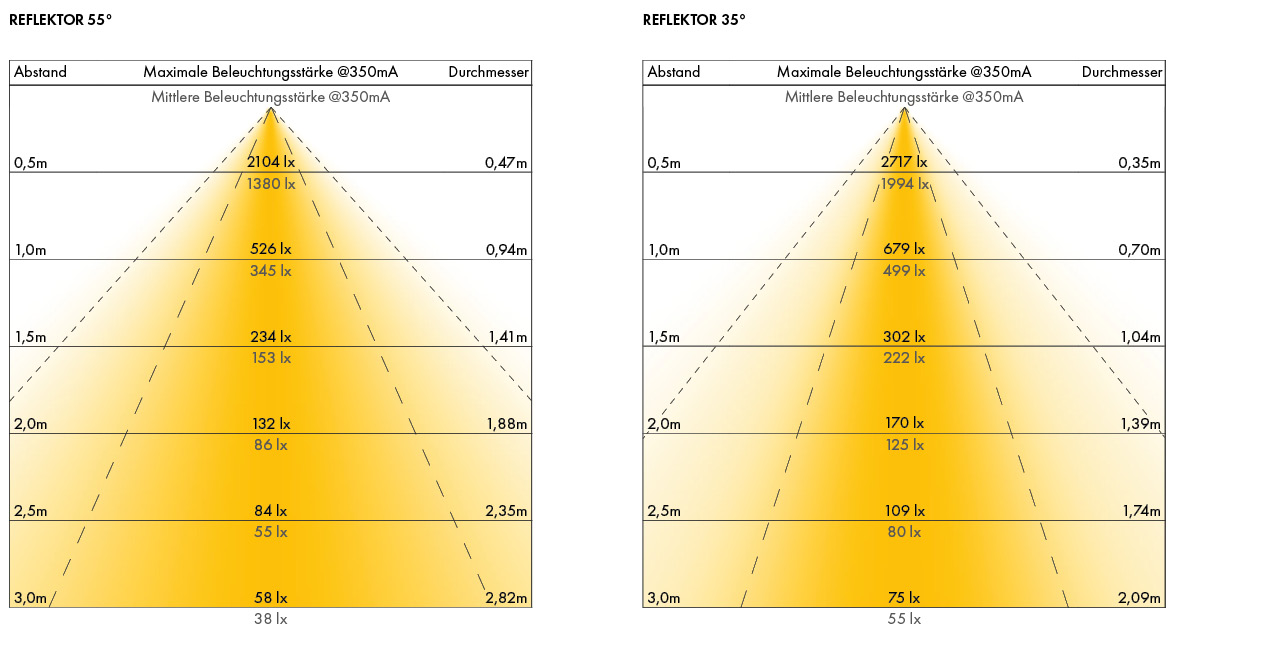

| Item No. | Reflector | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 _ _ | Beam angle 35° | ||||||||||||||||||||||||||||||||
| 6 _ _ | Beam angle 55° |
| Item No. | LED | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| _ 1 _ | DIM TO WARM | RA 96 | 1800 - 2700K @350mA | ||||||||||||||||||||||||||||||||
| _ 2 _ | RA 93 | 2700 K | ||||||||||||||||||||||||||||||||
| _ 3 _ | RA 93 | 3000 K | ||||||||||||||||||||||||||||||||
| _ 4 _ | RA 93 | 4000 K | ||||||||||||||||||||||||||||||||
| Item No. | Colour |
|---|---|
| _ _ K | Kaschmeregold |
| _ _ S | Snow silver |
| _ _ T | Total black |
| _ _ R | Rose |
| _ _ G | Gold |
| _ _ M | Muscat bronze |
| _ _ P | Polar white (equals RAL 9016) |
| REPURCHASE RECYCLING CIRCULAR ECONOMY |
| Item No. | LED-Driver 350mA |
|---|---|
| 299003 | ON-OFF | 4,2W 350mA² | 1 LED | not dimmable LWH 38x27x21mm |
| 399023 | ON-OFF | 25W 350mA | 1-4 LEDs | not dimmable LWH 147x40x32mm |
| 299223 | DALI-2 | PUSH 25W 350mA | 1-4 LEDs | dimmable 1-100% LWH 147x40x32mm |
| 399263 | DALI-2 | PUSH | 1-10V 60W 350mA | 1-6 LEDs | except D2W: 1-5 LEDs | dimmable 1-100% LWH 124x79x22mm |
² cable length max. 33m at 0,75mm² |
| Minimum diameter according to cable length | |
|---|---|
| 0,75 mm² – 100 m; 1,5 mm² – 200 m |
