Flush-mounted into the ceiling, this source of light is almost invisible. An abundance of light streams from a single spot. Masterfully crafted reflectors create beautiful cones of light in the room, casting dainty shadows and adding brilliance to any material. Depending on the installation module, minimum installation depth of 60 mm.
DOT 28
FRAMELESS INTEGRATION. Flush-mounted into the ceiling, this source of light is almost invisible. An abundance of light streams from a single spot. Masterfully crafted reflectors create beautiful cones of light in the room, casting dainty shadows and adding brilliance to any material. Dot 28 emanates a soft, atmospheric light. A system for simple, yet sophisticated lighting that lets a room speak for itself.
DOT 28 GLARE SUPPRESSION RING
The glare suppression ring refines the excellent light quality of the DOT 28 even further and creates a pleasant glare-free light. Due to a UGR value <19 and <22, this version is also suitable for workstations. The glare suppression ring makes the source of light disappear to the extent that you won´t know where the light comes from. "We make visible without being visible".
DOT 28 FADE RING
Invisibility in absolute perfection. The innovation of the glare ring renders the luminaire almost invisible during the day. In the evening, an intricate speck of light appears. We reduce the source of light to the point that it seems to disappear, allowing the DOT 28 to reveal the full quality of its light upon activation.
DOT 28 POWER
HIGH PERFORMANCE MEETS INSPIRATION. When a 28 mm spot puts out more than 700 lumen of light, a special kind of beauty unfolds: a powerful yet soft cone of light fills the room. Simply inspirational. This extraordinary performance is made possible by a longer cooling element and can be increased further by an additional cooling surface, in some cases leading to an output of almost 1000 lm.
>>> To DOT 28 POWERDOT 28 WET
DOT 28 also provides a calm ceiling mirror and beautiful light in covered outdoor areas or bathrooms: with DOT 28 WET - splash-proof on all sides IP44.
DOT 28 CONE
MINIMALISTICALLY EXPRESSIVE.
Almost immaterial, DOT 28 CONE gives the ceiling depth articulated with
geometrical precision and creates a subtle relief by playing with minimal
height and deep recesses. The precisely milled cone recedes deeper into
the ceiling than the upstand protrudes: full presence paired with
glare-controlled restraint.
>>> To DOT 28 CONE
>>> To DOT 28 POWER CONE
DIM TO WARM
Seamless transitions from brightness to atmospheric candlelight: With a perfect dimming curve, high light brilliance and high colour rendering (RA96), SYSTEM DOT 28 creates undreamt-of atmospheres
>>> More about DIM TO WARM
LENS 15°
SYSTEM DOT 28´s smallest light housing concentrates and projects light into the room with maximum brightness, but minimal scattering. A versatile instrument for staging objects and focusing light.
>>> More about LENS 15°
DOT 28 - frameless in all kinds of ceilings.
| Item No. | Luminaires |
|---|---|
| 2781_ _ _ | DOT 28 | for flush-mounting in SYSTEM DOT 28, solid aluminium, passive cooling 400 lm | 350 mA | 4W* |
| 3781_ _ _ | DOT 28 WET | IP44, for flush-mounting in SYSTEM DOT 28, splash-proof on all sides, solid aluminium, passive cooling 370 lm | 350 mA | 4W* |
| 168101 | ASSEMBLY PLIERS | circlip pliers, DOT 28, WALL 28, DOT SLIM and VERSA installation aid |
278020 278025 278030 278035 278040 278045 278013 |
REPAIR SET, for DOT 28, ORB 28, MOL 28, DOT 28 POWER, DOT 35 and DOT 35 POWER, for authorized electricians 2700 K 2700 K B35 for lens 3000 K 3000 K B35 for lens 4000 K 4000 K B35 for lens 1800-2700 K @350mA |
| * excl. LED-Driver; constant current | |
| CONFIGURE ONLINE |
Add the following specifications to your order:
| Item No. | Lens |
|---|---|
| 1 _ _ | Beam angle 15° |
| Item No. | Reflector | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 _ _ | Beam angle 35° | ||||||||||||||||||||||||||||||||||||
| 6 _ _ | Beam angle 55° |
| Item No. | LED | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| _ 1 _ | DIM TO WARM | RA 96 | 1800 - 2700K @350mA | ||||||||||||||||||||||||||||||||||||
| _ 2 _ | RA 93 | 2700 K | ||||||||||||||||||||||||||||||||||||
| _ 3 _ | RA 93 | 3000 K | ||||||||||||||||||||||||||||||||||||
| _ 4 _ | RA 93 | 4000 K | ||||||||||||||||||||||||||||||||||||
| Item No. | Colour |
|---|---|
| _ _ K | Kaschmeregold |
| _ _ S | Snow silver |
| _ _ T | Total black |
| _ _ R | Rose |
| _ _ G | Gold |
| _ _ M | Muscat bronze |
| _ _ P | Polar white (equals RAL 9016) |

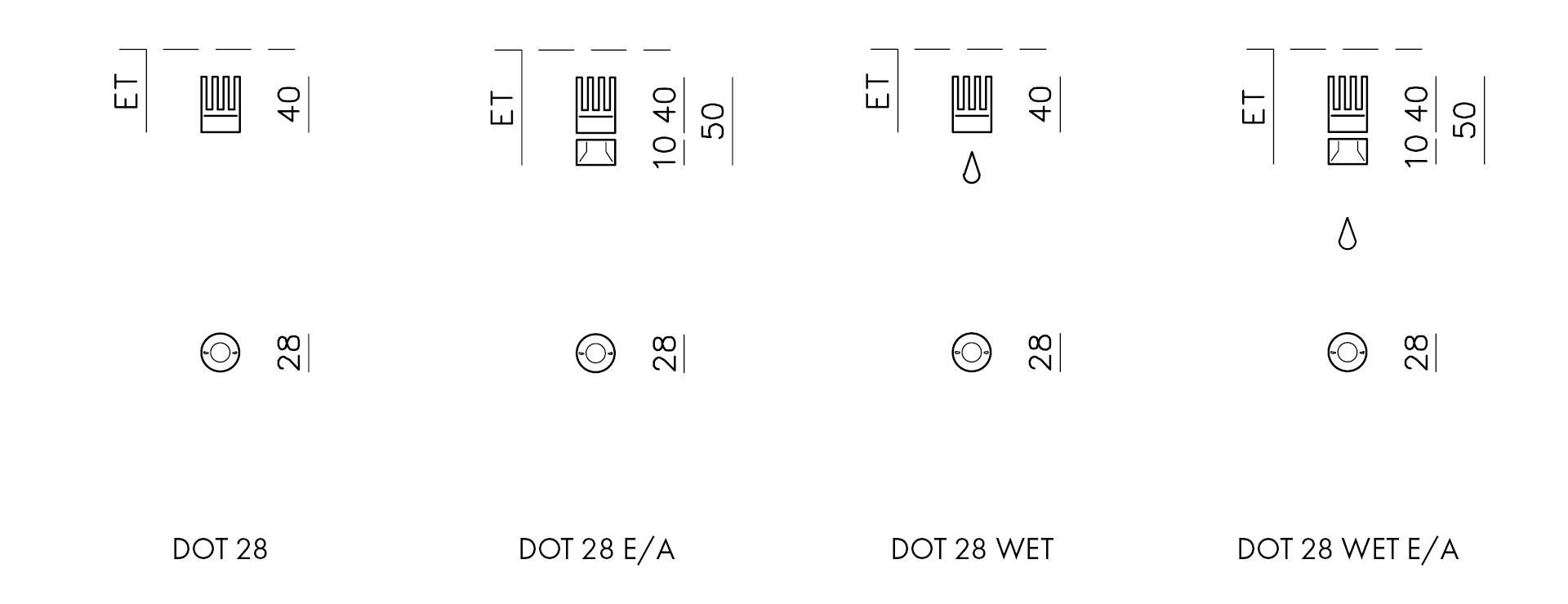

| _ _ E | Glare suppression ring | total black, anodised aluminium | UGR <10 at LENSE 15° | UGR <19 at 35° | UGR <22 at 55° @350 mA Installation depth ET = module installation depth +10 mm. Luminous flux diminishes by approx. 20% |
| _ _ A | Fade ring | polar white + total black center | UGR <10 at LENSE 20° | UGR <19 at 35° | UGR <22 at 55° @350mA Installation depth ET = module installation depth +10 mm. Luminous flux diminishes by approx. 20% |
| REPURCHASE RECYCLING CIRCULAR ECONOMY |
| Item No. | LED-Driver 350mA |
|---|---|
| 299003 | ON-OFF | 4,2W 350mA² | 1 LED³ | not dimmable LWH 38x27x21mm |
| 399023 | ON-OFF | 25W 350mA | 1-4 LEDs | not dimmable LWH 147x40x32mm |
| 299223 | DALI-2 | PUSH 25W 350mA | 1-4 LEDs | dimmable 1-100% LWH 147x40x32mm |
| 399263 | DALI-2 | PUSH | 1-10V 60W 350mA | 1-6 LEDs | except D2W: 1-5 LEDs | dimmable 1-100% LWH 124x79x22mm |
² cable length max. 33m at 0.75mm² |
| Minimum diameter according to cable length | |
|---|---|
| 0,75 mm² – 100 m; 1,5 mm² – 200 m |
