DOT SLIM INDEPENDENT


Regardless if it´s glass, metal or wood: Independence is what counts. The installation of flush lights with recessed edges and different materials is especially challenging. Yet even in this case, the solution was designed on the idea of the DOT SLIM: smallest installation height, highest light output. Flush with a recessed edge, completely glare suppressed. Same as usual: Everything with an easily changeable LED.



Item No. Module
317701 DOT SLIM INDEPENDENT | module with recessed edge and horizontal cooling surface for various surface materials, installed from the back with adjustability, drill hole Ø 30 mm, be aware of passive cooling. 760 lm | 900 mA | 11W*
ATTENTION: max. current feed for sound-control plaster 700 mA: 610 lm | 8,5W*

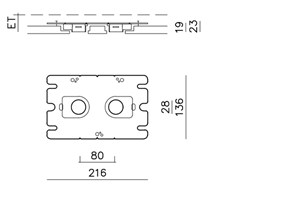

317706 DOT SLIM INDEPENDENT DUO module for 2 spotlight points with recessed edge and horizontal cooling surface for various surface materials, installed from the back with adjustability, drill hole Ø 30 mm, be aware of passive cooling. 1220 lm | 700 mA | 17W*
ATTENTION: max. current feed for sound-control plaster 700 mA: 920 lm | 12W*
* excl. LED driver; constant power

Item No. Types of lamps
3175_ _ E DOT SLIM GLARE SUPPRESSION | glare suppression ring | Anodized aluminum | UGR <19° at 25°/35° | UGR <22°bei 55°
3175_ _ A DOT SLIM FADE | fade ring | polarwhite with total black center | UGR <19°bei 25°/35° | UGR <22° at 55°
168101 MONTAGEZANGE DOT SLIM | für LED-Montage (Sicherungszange) für DOT SLIM, DOT 28 und VERSA
Add the following specifications to your order:
Item No. Lens
1 _ _ Beam angle 20°
Item No. Reflector
on request Beam angle 25°
3 _ _ Beam angle 35°
6 _ _ Beam angle 55°
Item No. LED
_ 1 _ DIM TO WARM | RA 96 | 1800 - 2700K @350mA
_ 7 _ DIM TO WARM | RA 96 | 1800 - 2700K @700mA
_ 2 _ RA 93 | 2700K
_ 3 _ RA 93 | 3000K
_ 4 _ RA 93 | 4000K
Item No. LED-Driver 350mA
299003 ON-OFF | 4,2W 350mA | 1 LED | not dimmable
LBH 38x27x21mm
299023 ON-OFF | 20W 350mA | 1-3 LEDs | not dimmable
LBH 118x35x26mm
299223 DA-PU | 25W 350mA | 1-4 LEDs* | dimmable | DALI/PUSH
LBH 105x68x23mm
299243 DA-PU | 40W 350mA | 1-7 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm
Item No. LED-Driver 500mA
299025 ON-OFF 25W 500mA | 1-3 LEDs | not dimmable
LBH 145x38x23mm
299225 DA-PU 25W 500mA | 1-3 LEDs | dimmable | DALI/PUSH
LBH 105x68x23mm
299245 DA-PU 40W 500mA | 1-6 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm
299265 DA-PU 60W 500mA | 1-7 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm
Item No. LED-Driver 700mA
299037 ON-OFF 35W 700mA | 1-3 LEDs | not dimmable
LBH 148x40x30mm
299227 DA-PU 25W 700mA | 1-2 LEDs | dimmable | DALI/PUSH
LBH 105x68x23mm
299247 DA-PU 40W 700mA | 1-4 LEDs* | dimmable | DALI/PUSH
LBH 124x82x23mm
299267 DA-PU 60W 700mA | 1-6 LEDs* | dimmable | DALI/PUSH
LBH 124x82x23mm
Item No. LED-Driver 900mA
299229 DA-PU 25W 900mA | 1-2 LEDs | dimmable | DALI/PUSH
LBH 105x68x23mm
299249 DA-PU 40W 900mA | 1-3 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm
299269 DA-PU 60W 900mA | 1-5 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm
Item No. LED-Driver 1050mA
(possible with concrete ceilings, the air space can be omitted)
299031 ON-OFF 35W 1050mA| 1-2 LEDs | not dimmable
LBH 148x40x30mm
299241 DA-PU 40W 1050mA | 1-2 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm
299261 DA-PU 60W 1050mA | 1-4 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm


* due to DIM TO WARM, one LED/LIGHT less than the MAX. value must be connected in series.
  Minimum diameter according to cable length
  0,75mm² - 100m; 1,5mm² - 200m

Dimension



maximum current


Text hier einfügen

References

Text hier einfügen

Installation Guide

Text hier einfügen

Illuminants

Text hier einfügen

LED with glare suppression ring

Text hier einfügen

LED with fade ring
