A module for solid construction and drywall installation. DOT SLIM can be installed into all ceiling types and is incredibly flexible in light colour, beam angle, arrangement, configuration and power supply. It is available in the previous generations with glare suppression ring and fade ring.
DOT SLIM | a module for solid construction and drywall installation
Application in solid construction: installation depth for plastered ceilings of only 25 mm without built-in casing.
Our everyday challenges let us grow. This is why we have developed the DOT SLIM. Instead of the regular insert components, a 25 mm shuttering board is sufficient as recess. Reinforcement rods can be put over the flat recess and an adjustable plaster edge of 0 – 6 mm assists in flush plastering around the lamp. Designed with practicality in mind: Also able to be used for drywall installation.
Application in drywall installation: thinnest substructure. Largest light output.
Here we have the same built-in module as for solid construction. With an installation depth of only 40mm, this DOT SLIM type will easily integrate into the substrate, regardless of what goes in the layer above. The adjustable plaster edge of 0-6mm assists in flush plastering. Furthermore, different arrangements, configurations and power supply options with a light output of up to 1220 Lumen are possible depending on the specific requirements. As always, the LED-illuminant is easily changeable from the front.
| Item No. | Module |
|---|---|

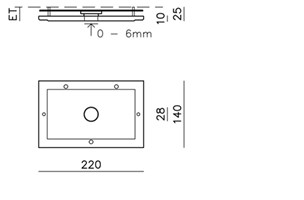

| 317100 | DOT SLIM | flush built-in module for solid construction or drywall installation
with horizontal cooling surface for minimal installation depth, incl. 0 – 6mm
adjustable frame and protective cover, be aware of passive cooling | 760 lm | 900 mA | 11W* Current feed of 1050 mA* is possible for concrete ceilings, air spaces can be eliminated: 825 lm | 13W* |

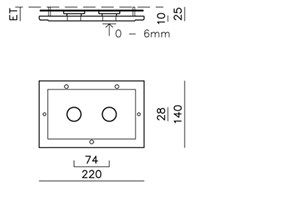

| 317105 | DOT SLIM DUO | flush-mounted built-in module for 2 spotlight points in solid construction
or drywall installation with horizontal cooling surface for minimal installation depth, incl.
0 – 6mm adjustable frame and protective cover,
be aware of passive cooling | 1220 lm | 17W* |
| 317199 | DOT SLIM CASING BOARD | Casing board for installation of DOT SLIM and DOT SLIM DUO into concrete LWH 230x150x25mm |
| *exkl. LED-Driver; Constant Current |
| Item No. | Types of lamps |
|---|---|
| 3175_ _ E | DOT SLIM LED GLARE SUPPRESSION | incl. glare suppression ring total black |
| 3175_ _ A | DOT SLIM LED FADE | incl. fade ring polarwhite with total black center |
| 168101 | ASSEMBLY PLIERS DOT SLIM | for LED-assembly (circlip pliers) for DOT SLIM, DOT 28, WALL 28 and VERSA |
| The luminaires shall be completed with the following information: |
| Item No. | Lens |
|---|---|
| 1 _ _ | Beam angle 20° |
| Item No. | Reflector |
|---|---|
| on request | Beam angle 25° |
| 3 _ _ | Beam angle 35° |
| 6 _ _ | Beam angle 55° |
| Item No. | LED |
|---|---|
| _ 1 _ | DIM TO WARM | RA 96 | 1800 - 2700K @350mA |
| _ 7 _ | DIM TO WARM | RA 96 | 1800 - 2700K @700mA |
| _ 2 _ | RA 93 | 2700K |
| _ 3 _ | RA 93 | 3000K |
| _ 4 _ | RA 93 | 4000K |
| Item No. | LED-Driver 350mA |
|---|---|
| 299003 | ON-OFF | 4,2W 350mA | 1 LED | not dimmable LBH 38x27x21mm |
| 299023 | ON-OFF | 20W 350mA | 1-3 LEDs | not dimmable LBH 118x35x26mm |
| 299223 | DA-PU | 25W 350mA | 1-4 LEDs* | dimmable | DALI/PUSH LBH 105x68x23mm |
| 299243 | DA-PU | 40W 350mA | 1-7 LEDs | dimmable | DALI/PUSH LBH 124x82x23mm |
| Item No. | LED-Driver 500mA |
|---|---|
| 299025 | ON-OFF 25W 500mA | 1-3 LEDs | not dimmable LBH 145x38x23mm |
| 299225 | DA-PU 25W 500mA | 1-3 LEDs | dimmable | DALI/PUSH
LBH 105x68x23mm |
| 299245 | DA-PU 40W 500mA | 1-6 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm |
| 299265 | DA-PU 60W 500mA | 1-7 LEDs | dimmable | DALI/PUSH
LBH 124x82x23mm |
| Item No. | LED-Driver 700mA |
|---|---|
| 299037 | ON-OFF 35W 700mA | 1-3 LEDs | not dimmable
LBH 148x40x30mm |
| 299227 | DA-PU 25W 700mA | 1-2 LEDs | dimmable |
DALI/PUSH LBH 105x68x23mm |
| 299247 | DA-PU 40W 700mA | 1-4 LEDs* | dimmable |
DALI/PUSH LBH 124x82x23mm |
| 299267 | DA-PU 60W 700mA | 1-6 LEDs* | dimmable |
DALI/PUSH LBH 124x82x23mm |
| Item No. | LED-Driver 900mA |
|---|---|
| 299229 | DA-PU 25W 900mA | 1-2 LEDs | dimmable
| DALI/PUSH LBH 105x68x23mm |
| 299249 | DA-PU 40W 900mA | 1-3 LEDs | dimmable
| DALI/PUSH LBH 124x82x23mm |
| 299269 | DA-PU 60W 900mA | 1-5 LEDs | dimmable
| DALI/PUSH LBH 124x82x23mm |
| Item No. | LED-Driver 1050mA (possible with concrete ceilings, the air space can be omitted) |
|---|---|
| 299031 | ON-OFF 35W 1050mA| 1-2 LEDs
| not dimmable LBH 148x40x30mm |
| 299241 | DA-PU 40W 1050mA | 1-2 LEDs
| dimmable | DALI/PUSH LBH 124x82x23mm |
| 299261 | DA-PU 60W 1050mA | 1-4 LEDs
| dimmable | DALI/PUSH LBH 124x82x23mm |
|
* due to DIM TO WARM, one LED/LIGHT less than the MAX. value must be connected in series. |
| Minimum diameter according to cable length | |
|---|---|
| 0,75mm² - 100m; 1,5mm² - 200m |
