Types of lamps for DOT SLIM

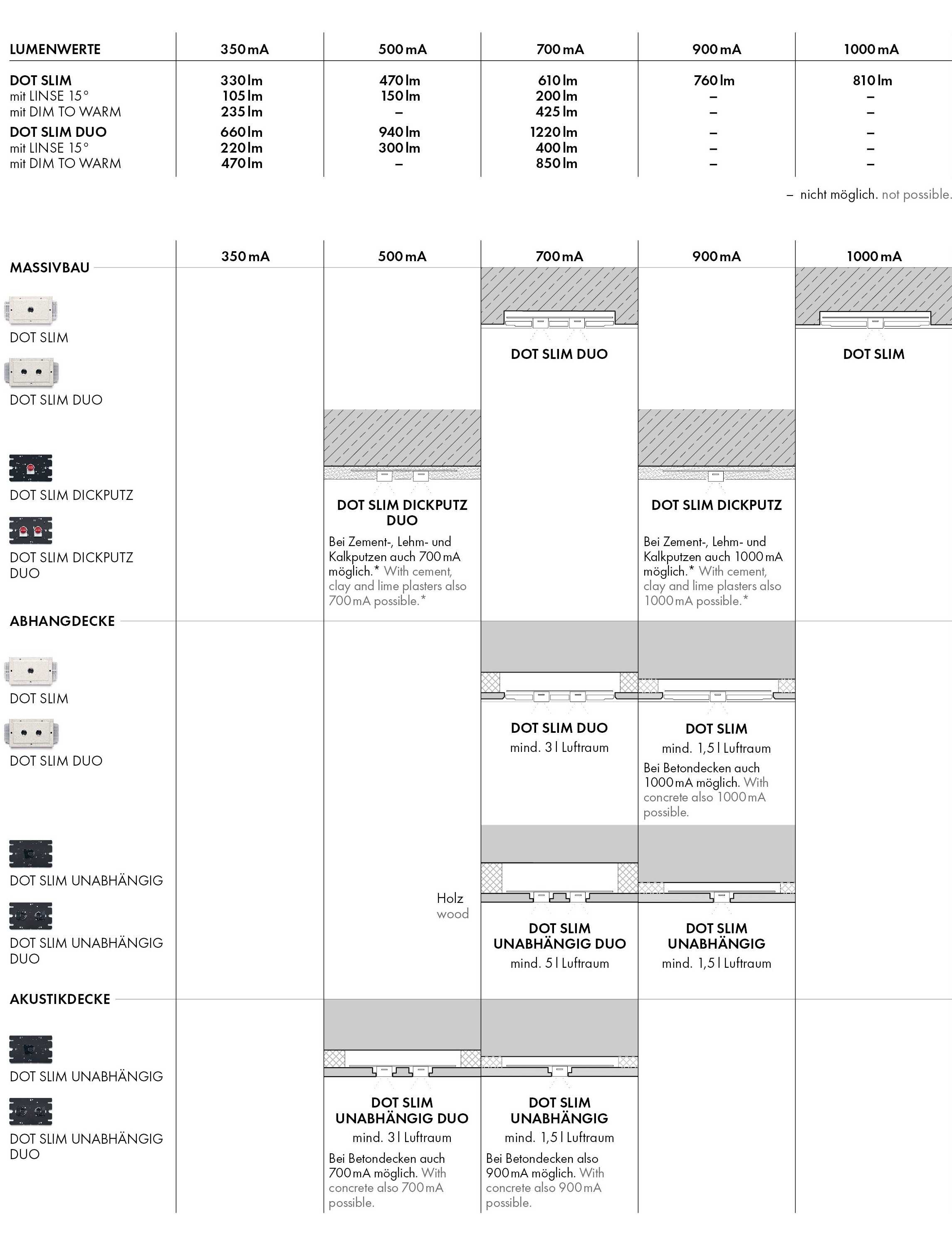

DOT SLIM LED | maximum glare suppression of up to 1220 lumen.

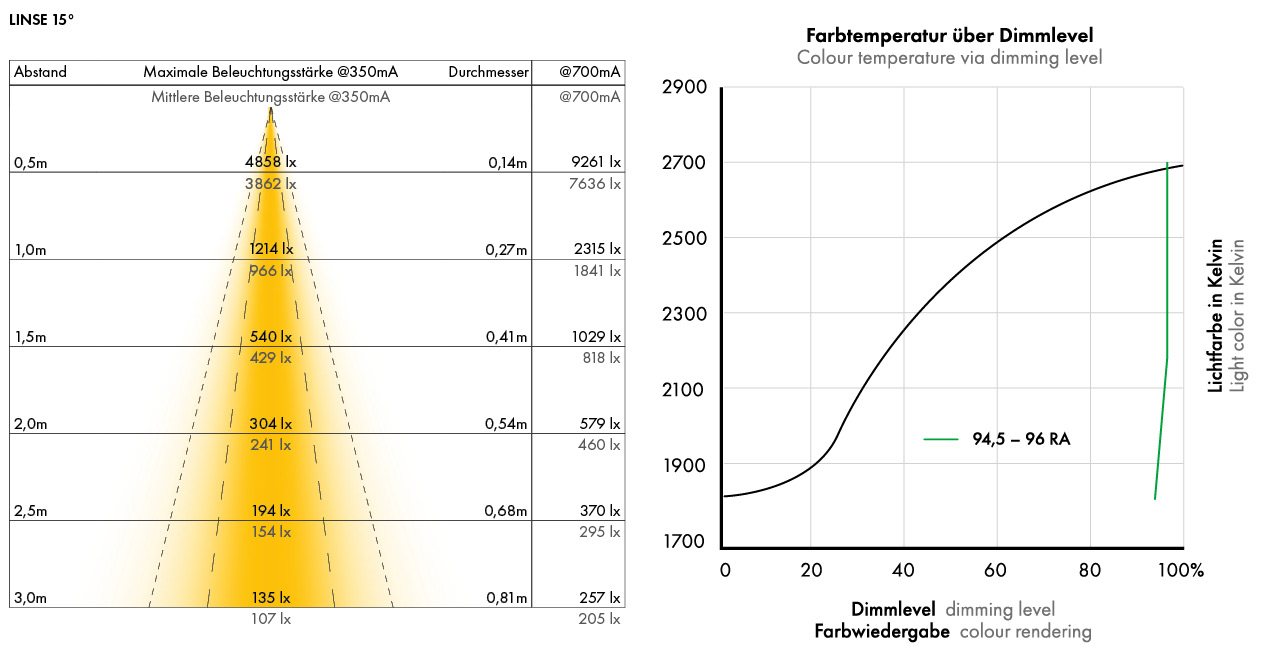

DIM TO WARM
Seamless transitions from brightness to atmospheric candlelight: With a perfect dimming curve, high light brilliance and high colour rendering (RA96), SYSTEM DOT SLIM creates undreamt-of atmospheres. No further wiring or controls required. ATTENTION: cannot be combined with LENS 20°
235 lm | 350 mA | 5W*
420 lm | 700 mA | 10W*
LENS 20°
SYSTEM DOT SLIM´s smallest light housing concentrates and projects light into the room with maximum brightness, but minimal scattering. A versatile instrument for staging objects and focusing light.
150 lm | 500 mA | 6W*
200 lm | 700 mA | 8,5W*
| Item No. | Types of lamps |
|---|---|
| 3175_ _ E | DOT SLIM LED GLARE SUPPRESSION | deep black, anodised aluminium, Luminous flux diminishes by approx. 20% UGR <10 at LENS 20° | UGR <19 at 35° | UGR <22 at 55° |
| 3175_ _ A | DOT SLIM LED FADE | polarwhite with deep black center, Luminous flux diminishes by approx. 20% UGR <10 at LENS 20° | UGR <19 at 35° | UGR <22 at 55° |
| 168101 | MONTAGEZANGE DOT SLIM | für LED-Montage (Sicherungszange) für DOT SLIM, DOT 28 und
VERSA |
| * excl. LED-Driver; constant current |
Add the following specifications to your order:
| Item No. | Lens |
|---|---|
| 1 _ _ | Beam angle 20° |
| Item No. | Reflector |
|---|---|
| On request | Beam angle 25° |
| 3 _ _ | Beam angle 35° |
| 6 _ _ | Beam angle 55° |
| Item No. | LED |
|---|---|
| _ 1 _ | DIM TO WARM | RA 96 | 1800 - 2700K @350mA |
| _ 7 _ | DIM TO WARM | RA 96 | 1800 - 2700K @700mA |
| _ 2 _ | RA 93 | 2700K |
| _ 3 _ | RA 93 | 3000K |
| _ 4 _ | RA 93 | 4000K |
| Item No. | LED-Driver 500mA |
|---|---|
| 299025 | ON-OFF 25W 500mA | 1-3 LED | not dimmable LWH 145x38x23mm |
| 299225 | DA-PU 25W 500mA | 1-3 LEDs | dimmable LWH 105x68x23mm |
| 299245 | DA-PU 40W 500mA | 1-6 LEDs | dimmable | DALI/Push LWH 124x82x23mm |
| 299265 | DA-PU 60W 500mA | 1-7 LEDs | dimmable | DALI/Push LWH 124x82x23mm |
| Item No. | LED-Driver 700mA |
|---|---|
| 299037 | ON-OFF 35W 700mA | 1-3 LEDs | not dimmable LWH 148x40x30mm |
| 299227 | DA-PU 25W 700mA | 1-2 LEDs | dimmable | DALI/Push LWH 105x68x23mm |
| 299247 | DA-PU 40W 700mA | 1-4 LEDs² | dimmable | DALI/Push LWH 124x82x23mm |
| 299267 | DA-PU 60W 700mA | 1-6 LEDs² | dimmable | DALI/Push LWH 124x82x23mm |
| Item No. | LED-Driver 900mA |
|---|---|
| 299229 | DA-PU 25W 900mA | 1 LED | dimmable | DALI/Push LWH 105x68x23mm |
| 299249 | DA-PU 40W 900mA | 1-3 LEDs | dimmable | DALI/Push LWH 124x82x23mm |
| 299269 | DA-PU 60W 900mA | 1-5 LEDs | dimmable | DALI/Push LWH 124x82x23mm |
| Item No. | LED-Driver 1050mA |
|---|---|
| 299031 | ON-OFF 35W 1050mA | 1-2 LEDs | not dimmable LWH 148x40x30mm |
| 299241 | DA-PU 40W 1050mA | 1-2 LEDs | dimmable | DALI/Push LWH 124x82x23mm |
| 299261 | DA-PU 60W 1050mA | 1-4 LEDs | dimmable | DALI/Push LWH 124x82x23mm |
² due to the power consumption, one LED/LIGHT less than the MAX. value must be connected in series. |
