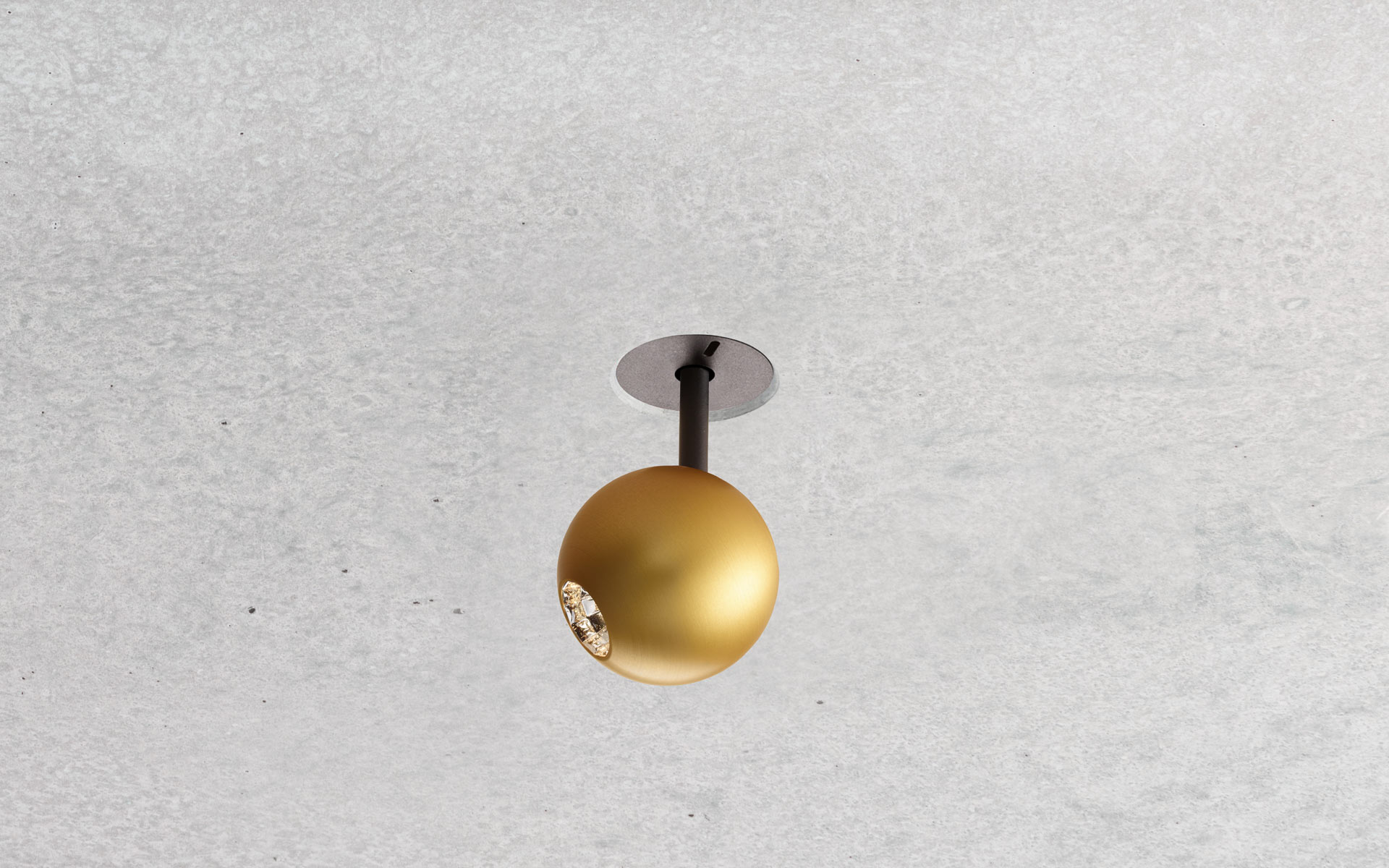

Frameless mounting in concrete? Just place the concrete capsule on the formwork, which works almost tool-free, and include it in the ceiling when pouring the concrete. Thanks to the space left between capsule neck and ceiling edge, the capsule including its little legs disappears in the ceiling entirely. All you can see is a chamfered hole with bayonet mechanism, ready to house any pendant luminaire or product of our DOT 28 line.
Click here to go to installation.
Item No. | Module |
---|---|

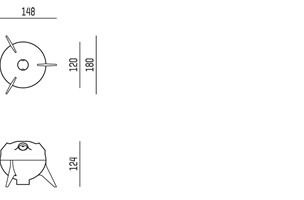

208000 | CONCRETE CAPSULE 28 | mounting box with bayonet system, incl. plug for concrete formwork Ø120 | 10,0 kg | Installation Depth 130mm |
208900 | EXTENDED COOLING SURFACE | for capsules with higher current feed, see installation instructions, for DOT 28 POWER, Ø 230mm |
208901 | ADJUSTMENT IRON | for extended cooling surface, for alignment of the cooling mandrel, in case it was set in concrete at an angle |
