1. Use the supplied galvanized nail to nail formwork plug onto formwork.
2. Place lower part of the capsule onto formwork plug and push until it
locks firmly into place. Insert both locking pins into the upper slots in the formwork plug.
3. Use screwdriver to clear the openings needed for empty conduits in the lid and clean them. Press empty conduits into openings until it they are fastened (about two or three corrugations). Now firmly push capsule lid onto lower part and lock it into place.
4. Securely fasten empty conduit to rebar to prevent it from loosening through concrete or concrete vibrator.
For element ceilings/filigree ceilings please use our formwork plug (Item No. 208030) for gluing.
5. (OPTION) When using capsule cover with added cooling surface, fasten empty conduit directly onto added cooling surface.
6. After stripping formwork, clamping mechanism has to be unlocked by pushing locking pins into cavity of the capsule with a screwdriver. Now remove formwork plug by pulling the nail with pliers. Remove locking pins and clean capsule, if necessary, for further use with bayonet mechanism.
CAUTION: Under extreme weather or environmental conditions (heat, high humidity), lid of capsule may open more easily when the concrete is vibrated. If such conditions are present, secure lid to lower part of capsule using fabric tape or other means (e.g. cable ties).
In the case of exposed concrete ceilings, small hairline cracks may occur due to installation casings or insert components. These do not constitute a reason for complaint.
CAUTION: If the DOT 28 POWER can not be mounted without resistance the cooling surface might has been set in concrete at an angle. Do not apply pressure on the DOT 28 POWER and do not disassemble the cooling mandrel! Use the adjustment iron (Item No. 208901) for the subsequent adjustment of the cooling mandrel! The subsequent adjustment is executed by hand or by using a hammer.
1. Use the supplied nail to nail formwork plug onto formwork.

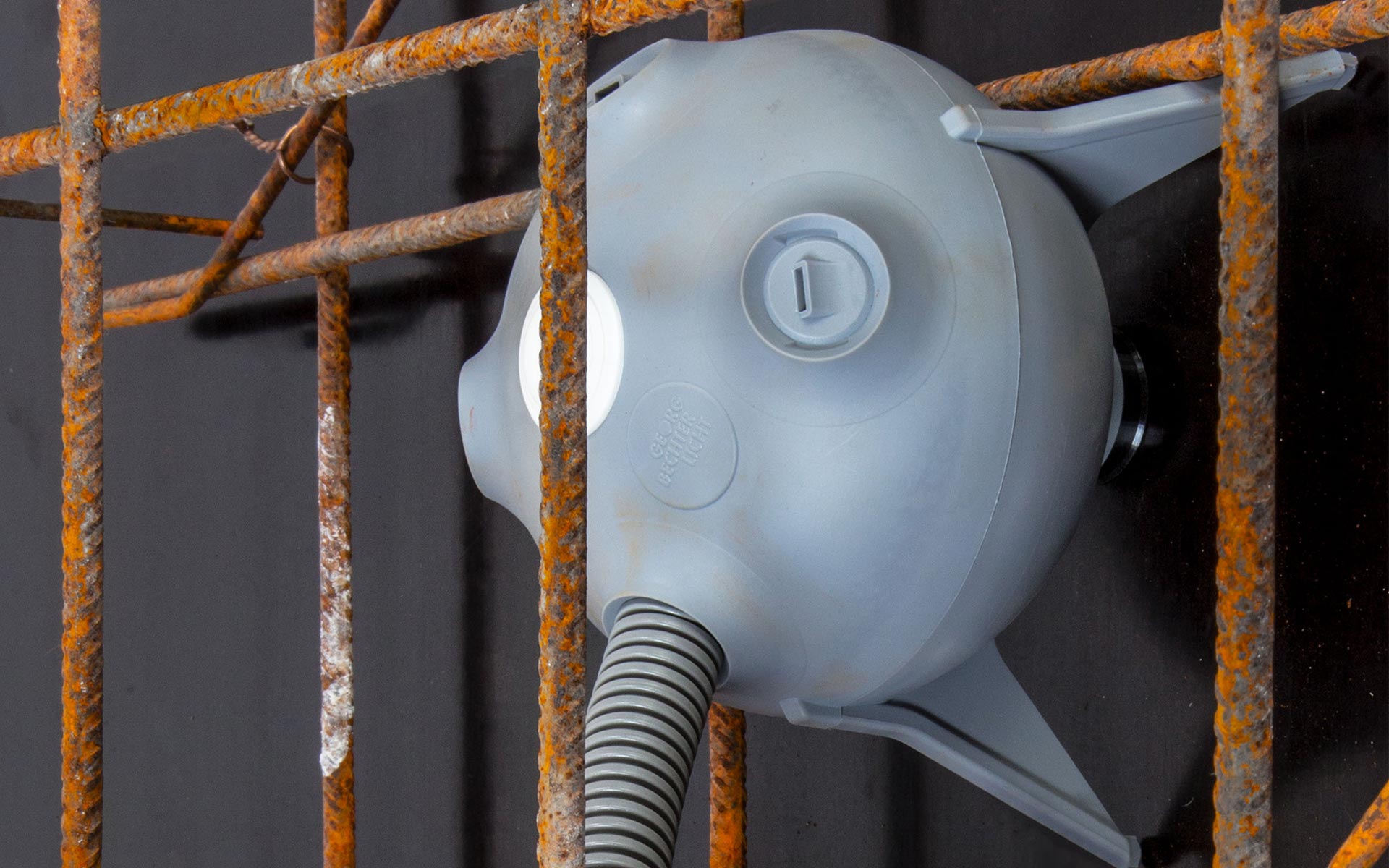

2. Place lower part of the capsule with the marking UP (=direction of light) on the shuttering plug until it locks into place. Insert both locking pins into the upper slots in the formwork plug.
3. Use screwdriver to clear the openings needed for empty conduits in the lid and clean them. Press empty conduits into openings until it they are fastened (about two or three corrugations). Now firmly push capsule lid onto lower part and lock it into place.
4. Securely fasten empty conduit to rebar to prevent it from loosening through concrete or concrete vibrator.
5. Pay particular attention to the capsule when concreting. CAUTION! Protect them from falling concrete or shaking!
6. After stripping formwork, clamping mechanism has to be unlocked by pushing locking pins into cavity of the capsule with a screwdriver. Now remove formwork plug by pulling the nail with pliers. Remove locking pins and clean capsule, if necessary, for further use with bayonet mechanism.
7. For the electrical connection of the ARCHI-TEC please see to the relevant instalation instructions.
