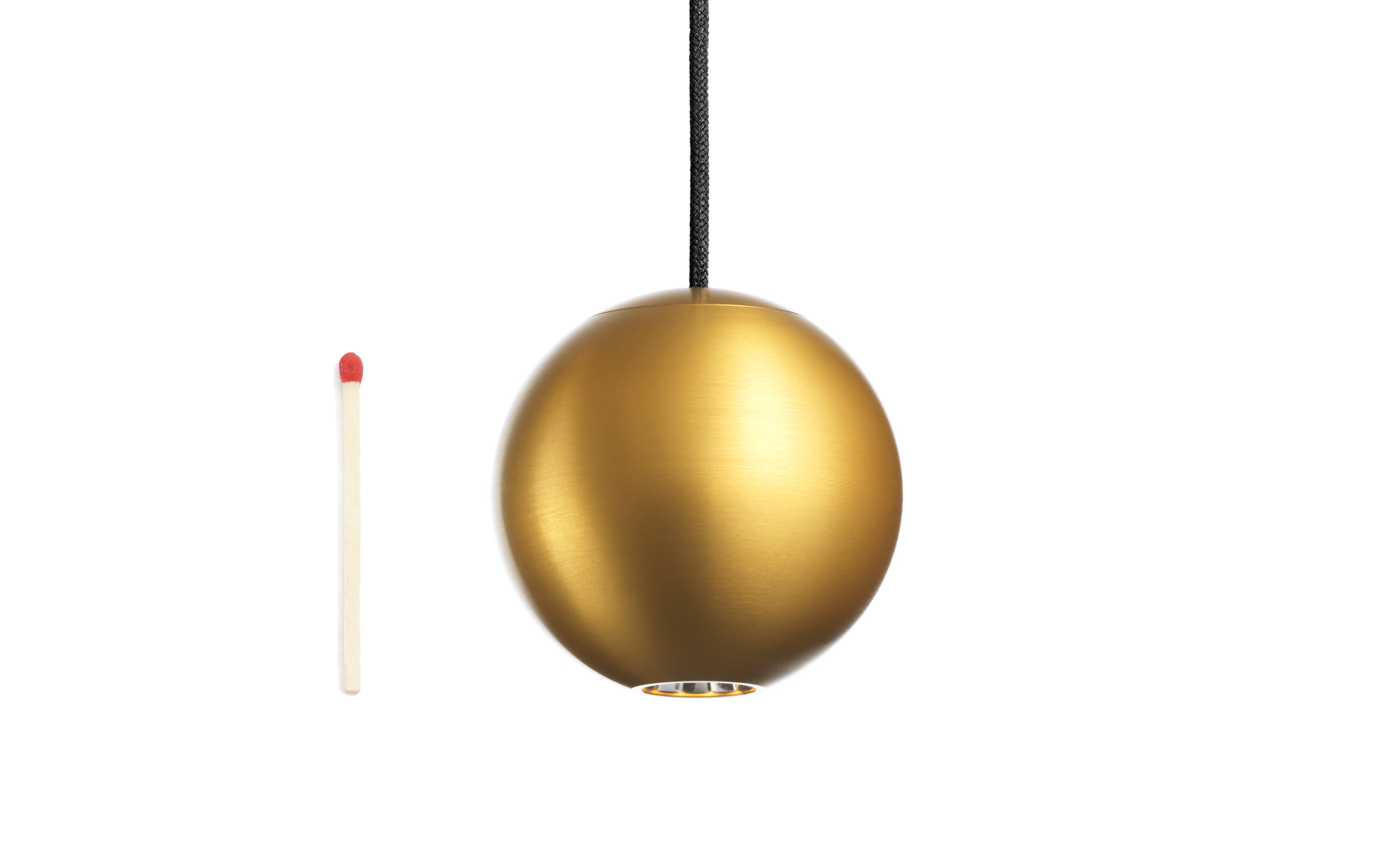

The sphere, physicists say, is the most perfect of all shapes: robust, with the smallest surface-to-volume ratio. Designers say the sphere is elegant and timeless. Well, it all comes together in ORB 28, a minimalistic spherical pendant luminaire. Made from high-quality anodised aluminium, hanging on a thin braided cable.


INSTALLATION
CONFIGURATOR

ORB 28 - frameless, for all kinds of ceilings


Item No. LED Modul
2788_ _ _ ORB 28, suspending, installation in SYSTEM DOT 28 solid aluminium, cable length: 150 cm/4.9 ft
400 LM | 350mA | 4W*
168810 ORB OVERLENGTH coaxial braid cable, up to 4 m overall. State overall length when ordering!
* excl. LED-Driver, constant power
Add the following specifications to your order.
Item No. Reflector
2 _ _ rotation angle 25°
3 _ _ rotation angle 35°
6 _ _ rotation angle 55°
Item No. LED
_ 2 _ RA 93 | 2700 K
_ 3 _ RA 93 | 3000 K
_ 4 _ RA 93 | 4000 K
* Information without LED-Driver and constant current.
Item No. Colour
_ _ K kashmeregold
_ _ S snow silber
_ _ T total black
_ _ R rose
_ _ G gold
_ _ M muskat
_ _ P polar white
Item No. LED-Driver ON/OFF
299003 ON-OFF 4,2W 350mA | 1 LED
LWH 38x27x21 MM
299023 ON-OFF 20W 350mA | 1-3 LEDs
LWH 118x35x26 MM
Item No. LED-Driver 0-10V
299123 0-10 25W 350mA | 1-4 LEDs
LWH 105x68x23 MM
299143 0-10 40W 350mA | 1-7 LEDs
LWH 124x82x23 MM
Item No. LED-Driver DALI/Push
299223 DA-PU 25W 350mA | 1-4 LEDs
LWH 105x68x23 MM
299243 DA-PU 40W 350mA | 1-7 LEDs
LWH 124x82x23 MM
  Minimum diameter according to cable length
  0,5 mm² – 100 m, 0,75 mm² – 150 m, 1,0 mm² – 200 m

Dimensions + Luminous intensity

Text hier einfügen

Text hier einfügen


Reference

Glanzstück

Installation guide

Text hier einfügen

Installation modules

Text hier einfügen

DRYWALL

Text hier einfügen

CONCRETE

Text hier einfügen

PLASTER

Text hier einfügen

WOOD


composition baldachin

Aufbau Baldachin

INDEPENDENT
