ORGANIC EXTENSION.

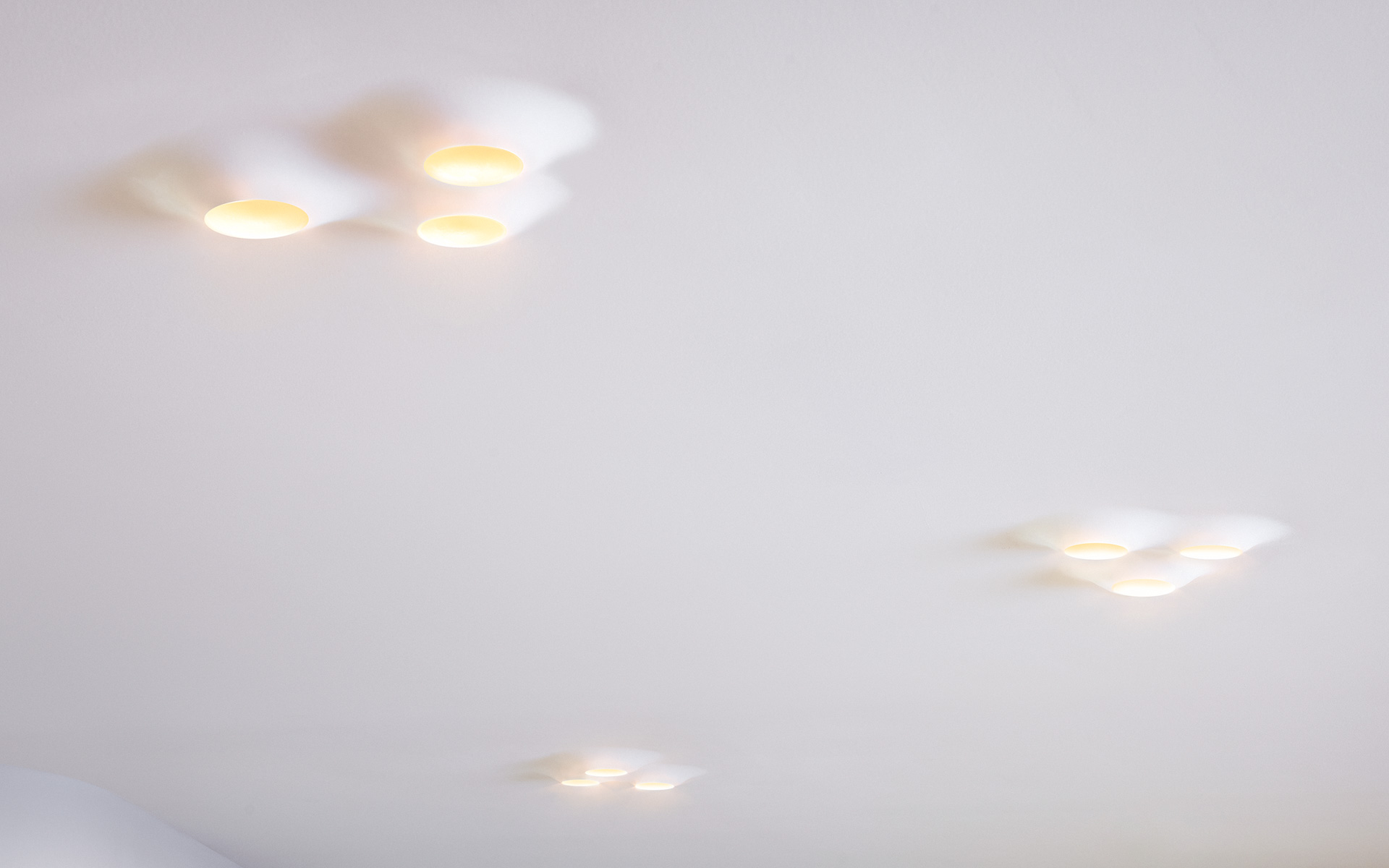

Like a constellation of three planets, VERSA opens up horizons, yet dissolves into an atmosphere of light. The three-piece is a built-in module for plaster surfaces. Organically shaped, it is equipped with changeable LED illuminants. This technical novelty revolutionises the replacement of the luminary through simplicity.
Click here to see references.
| Item No. | Module |
|---|---|
| 316000 | VERSA | fibre-reinforced built-in plaster module with 3 LED mounts, ready for painting, excl. changeable LED, maximum current feed with 700 mA possible
65 ID | 785lm | 350mA | 12.5W* 65 ID | 1430lm | 700mA | 25.5W* |
| Item No. | Lamps |
|---|---|
| 317532E | LED GLARE SUPPRESSION insert for VERSA and DOT SLIM
2700K | 261lm | 350mA | 4W* |
| 317533E | LED GLARE SUPPRESSION insert for VERSA and DOT SLIM
3000K | 261lm | 350mA | 4W* |
| * excl. LED-Driver; constant current |
| Art.Nr. | LED-Driver 350mA |
|---|---|
| 399023 | ON-OFF | 25W 350mA | 1-4 LEDs | not dimmable LWH 147x40x32mm |
| 299223 | DALI-2|PUSH 25W 350mA | 1-4 LEDs | dimmable 1-100% LWH 147x40x32mm |
| 399263 | DALI-2|PUSH|1-10V 60W 350mA | 1-6 LEDs | except D2W: 1-5 LEDs | dimmable 1-100% LWH 124x79x22mm |
| Art.Nr. | LED-Driver 700mA (for DOT 28 POWER depending on installation situation) |
|---|---|
| 299037 | ON-OFF 35W 700mA | 1-3 LEDs | not dimmable LWH 148x40x30mm |
| 299227 | DALI-2|PUSH 25W 700mA | 1-2 LEDs | dimmable 1-100% LWH 147x40x32mm |
| 399267 | DALI-2|PUSH|1-10V 60W 700mA | 1-5 LEDs | dimmable 1-100% LWH 124x79x22mm |
