DOT SLIM - LENS 20°:
- DOT SLIM with LENS 20° can only be used with the built-in modules featuring a
black anodized cooling plate.
(Item No. 317101, 317106, 317301, 317306, 317701, 317706)
- Depending on the installation situation, DOT SLIM with LENS 20° can be powered with a maximum of 700mA. (see table - max. current)
- DOT SLIM with LENS 20° in the built-in module DOT SLIM INDEPENDENT DUO in wood (Item No. 317706), must only be installed in an airspce with a minimum of 5dm³.
DOT SLIM - DIM TO WARM:
- DOT SLIM with DIM TO WARM can be powered with either 350mA or 700mA depending on the installation situation. (see table max. current) The dimming curve is adjusted to this.
- DOT SLIM with DIM TO WARM in the built-in module DOT SLIM INDEPENDENT DUO in wood (Item No. 317706), must only be installed in an airspce with a minimum of 5dm³.
Due to power input, the drivers DA-PU 25W 350mA (Item No. 299223) and DA-PU 40W 700mA (Item No. 299247) may only be operated with a maximum of 3 luminaires in series when DIM TO WARM is used. Driver DA-PU 60W 700mA (Item No. 299267) can be operated with a maximum of 5 luminaires.
ELECTRICAL INSTALLATION:
All electrical installations and maintenance work must be carried out by an
authorised electrician according to local safety regulations.
All luminaires are tested live working before packaging.
Please observe the circuit diagram enclosed.
CAUTION: NO WARRANTY IN CASE OF HOT PLUG!
DO NOT CONNECT, LOCK OR REPLACE LUMINAIRES UNDER VOLTAGE!
For mounting and dismounting the luminaire the led-driver has to be disconnected from the supply voltage for at least 10-15 seconds! HOT PLUG causes direct damage to the LED, which is not covered by warranty.

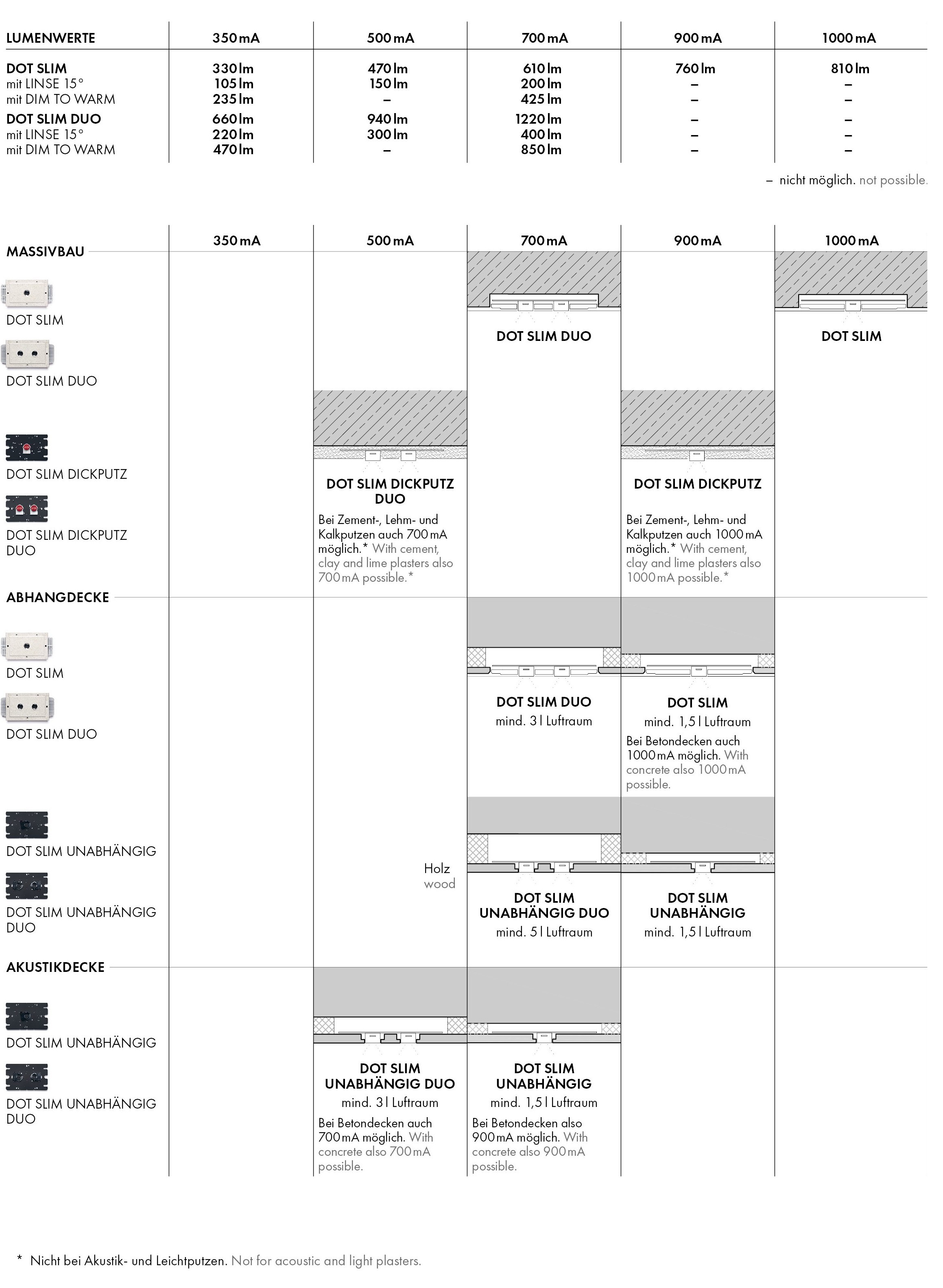

MAXIMUM CURRENT SUPPLY
