Our tried and tested DOT 28 quality. Now also available for flush-mounting.
DOT 35 works in any suspended ceiling and is perfect for all situations where good light and standardised mounting is needed. A delicate luminaire. Minimum size, maximum light quality. DOT 35 can be installed in any suspended ceiling using a spring mount, without the need of an installation module.
DOT 35
INNOVATION FOR THE CONVENTIONAL. DOT 35 works in any suspended ceiling and is perfect for all situations where good light and standardised mounting is needed. A delicate luminaire. Minimum size, maximum light quality. Our tried and tested DOT 28 quality available for conventionally mounted spotlight.
DOT 35 GLARE SUPPRESSION RING
The glare suppression ring refines the excellent light quality of the DOT 35 even further and creates a pleasant glare-free light. Due to a UGR value <19 and <22, this version is also suitable for workstations.
DOT 35 FADE RING
Invisibility in absolute perfection. The innovation of the glare ring renders the luminaire almost invisible during the day. In the evening, an intricate speck of light appears. We make the light source disappear in order to reveal the light and its quality.
DOT 35 POWER
POWERFUL.
DOT 35 POWER is the more powerful version of the DOT 35. The longer cooling element enables a higher light output of up to 740 lm with maximum light quality. The longer design requires a greater installation depth of 110 mm, or 120 mm with anti-glare and cut-off rings.
>>> To DOT 35 POWER
DOT 35 WET
DOT 35 also provides a calm ceiling mirror and beautiful light in covered outdoor areas or bathrooms: with DOT 35 WET - splash-proof on all sides IP44.
DOT 35 CONE
MINIMALISTICALLY EXPRESSIVE.
Almost immaterial, DOT 35 CONE gives the ceiling depth articulated with geometrical precision and creates a subtle relief by playing with minimal height and deep recesses. The precisely milled cone recedes deeper into the ceiling than the upstand protrudes: full presence paired with glare-controlled restraint.
>>> TO DOT 35 CONE
>>> TO DOT 35 POWER CONE
DIM TO WARM
Seamless transitions from brightness to atmospheric candlelight: With a perfect dimming curve, high light brilliance and high colour rendering (RA96), SYSTEM DOT 28 creates undreamt-of atmospheres
>>> More about DIM TO WARM
LINSE 15°
SYSTEM DOT 28´s smallest light housing concentrates and projects light into the room with maximum brightness, but minimal scattering. A versatile instrument for staging objects and focusing light.
>>> More about LENS 15°
DOT 35 - suitable for installation in any suspended ceiling without a mounting module.
| Item No. | Types of lamps |
|---|---|

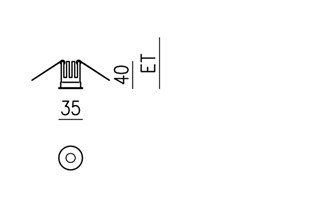

| 2101_ _ _ | DOT 35 | recessed luminaire with mounting springs for tool-free installation in suspended ceiling, solid aluminum, passive cooling, hole diameter 30 mm, installation depth ET 70 mm
400 lm | 350mA | 4W* |
| 3101_ _ _ | DOT 35 WET | IP44, recessed luminaire with mounting springs for tool-free installation in suspended ceilings, splash-proof on all sides, made of solid aluminum, passive
cooling, hole diameter 30 mm, installation depth ET 70 mm
370 lm | 350mA | 4W* |
278020 278025 278030 278035 278040 278045 278013 |
REPAIR SET, for DOT 28, ORB 28, MOL 28, DOT 28 POWER, DOT 35 and DOT 35 POWER, for authorised electricians 2700 K 2700 K B35 for lens 3000 K 3000 K B35 for lens 4000 K 4000 K B35 for lens 1800-2700 K @350mA |
| *excl. LED-Driver; constant current | |
| CONFIGURE ONLINE |
Add the following specifications to your order:
| Item No. | Lens |
|---|---|
| 1 _ _ | Beam angle 15° |
| Item No. | Reflector | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 _ _ | Beam angle 35° | ||||||||||||||||||||||||||||||||||||
| 6 _ _ | Beam angle 55° |
| Item No. | LED | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| _ 1 _ | DIM TO WARM | RA 96 | 1800 - 2700K @350mA | ||||||||||||||||||||||||||||||||||||
| _ 2 _ | RA 93 | 2700 K | ||||||||||||||||||||||||||||||||||||
| _ 3 _ | RA 93 | 3000 K | ||||||||||||||||||||||||||||||||||||
| _ 4 _ | RA 93 | 4000 K | ||||||||||||||||||||||||||||||||||||
| Item No. | Colour |
|---|---|
| _ _ K | Kashmeregold |
| _ _ S | Snow silver |
| _ _ T | Total black |
| _ _ R | Rose |
| _ _ G | Gold |
| _ _ M | Muscat bronze |
| _ _ P | Polar white |
| _ _ E | Glare suppression ring | total black, anodised aluminium | UGR <10 at LENS 15°, UGR <19 at 35°, UGR <22 at 55° @350mA | installation depth ET + module installation depth +10 mm
Luminous flux diminishes by approx. 20% |
| _ _ A | Fade ring | polar white + total black center| UGR <10 at LENS 15°, UGR <19 at 35°, UGR <22 at 55° @350mA | installation depth ET + module installation depth +10 mm
Luminous flux diminishes by approx. 20% |
| Item No. | LED-Driver ON-OFF |
|---|---|
| 299003 | ON-OFF | 4,2W 350mA² | 1 LED | not dimmable LWH 38x27x21mm |
| 399023 | ON-OFF | 25W 350mA | 1-4 LEDs | not dimmable LWH 147x40x32mm |
| Item No. | LED-Driver DALI-2 | Push |
|---|---|
| 299223 | DALI-2 | PUSH 25W 350mA | 1-4 LEDs | dimmable 1-100% LWH 147x40x32mm |
| 399263 | DALI-2 | PUSH | 1-10V 60W 350mA | 1-6 LEDs | except D2W: 1-5 LEDs | dimmable 1-100% LWH 124x79x22mm |
² cable length max. 33m at 0,75mm² |
| Minimum diameter according to cable length | |
|---|---|
| 0,75mm²-100m; 1,5mm²- 200m |
